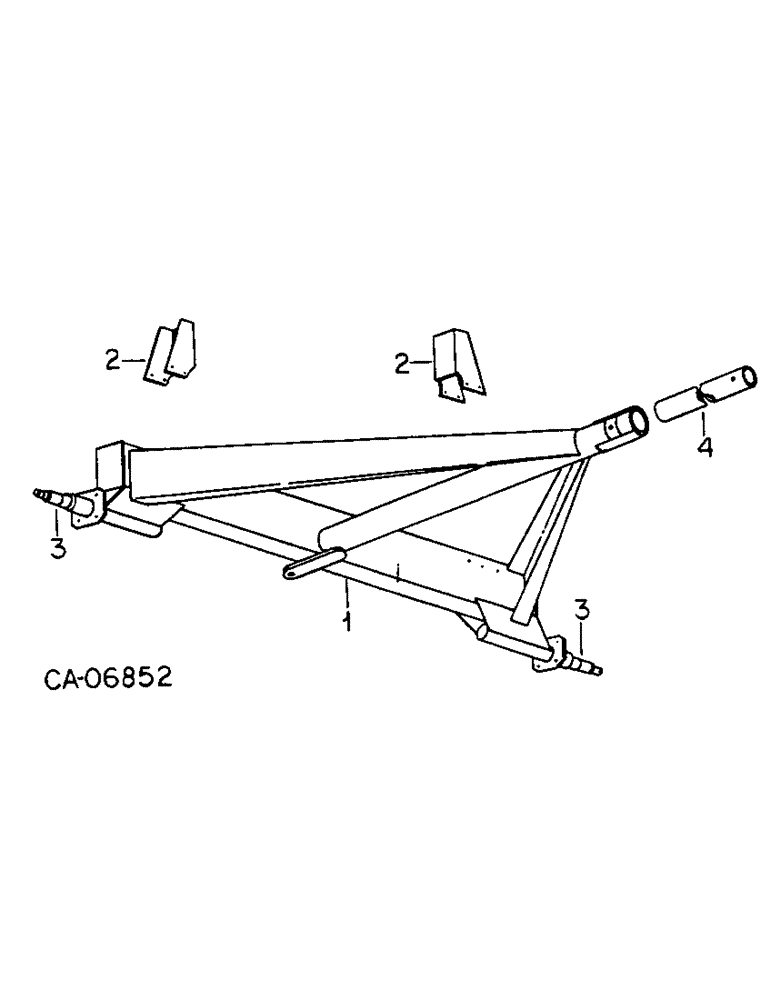

Запчасти Case IH VARIOUS (D-44) - REAR AXLE ASSY

1

145765C1

AXLE ASSY, rear, Composed of:

1шт.

55936C1

WASHER

spindle

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-NF pln slt type 5

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

2

56492C1

STAKE

2шт.

433142

BOLT

7/16 x 4-1/2 pln type 5

4шт.

NLS

NO LONGER SERVICED

7/16 pln type 5

4шт.

3

145766C1

SPINDLE ASSY, rear, Composed of:

1шт.

55936C1

WASHER

spindle

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-NF pln slt type 5

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

4

145753C1

REACH, 84 in.

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

5/8 x 5 pln type 5

1шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2 type 5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8 PHC p/t lock type 5

3шт.
