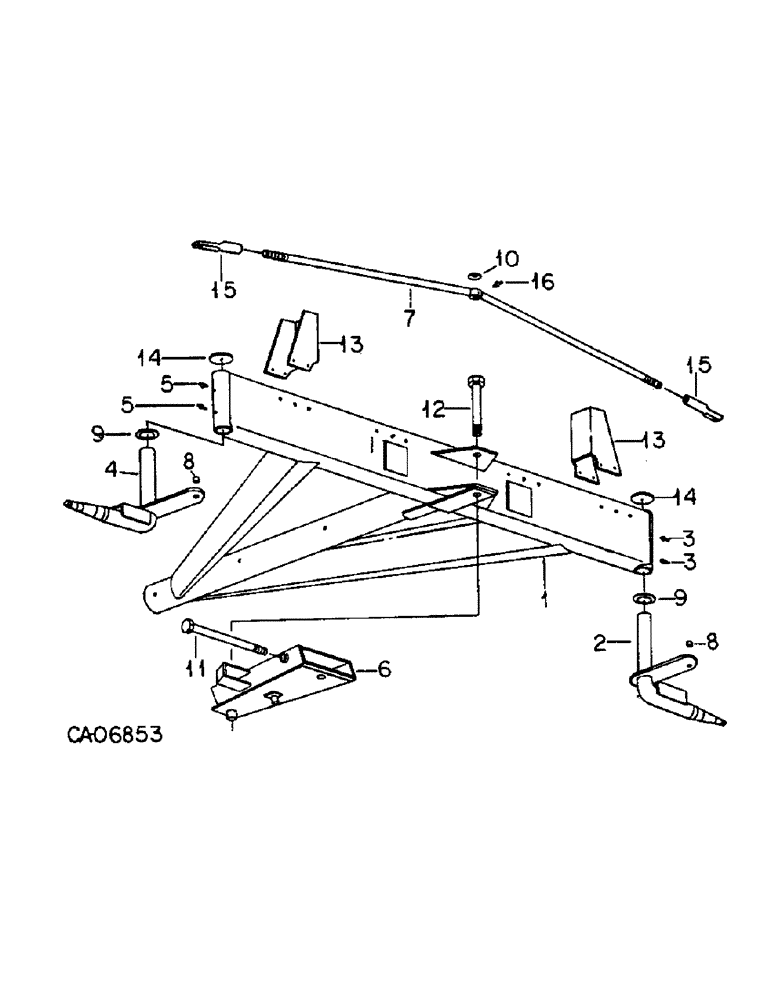

Запчасти Case IH VARIOUS (D-43) - FRONT AXLE ASSY

1

145757C1

AXLE, front

1шт.

2

145758C1

SPINDLE ASSY, LH, Composed of

1шт.

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

cover

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 5/16 x 5-1/2 type 1

1шт.

55936C1

WASHER

spindle

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-NF pln slt type 5

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

4

145761C1

SPINDLE

ASSY, RH, Composed of

1шт.

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

cover

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 5/16 x 5-1/2 type 1

1шт.

55936C1

WASHER

spindle

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-NF pln sln type 5

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

6

145762C1

HITCH

1шт.

56277C1

BOLT, extension

2шт.

218443

NUT

3/4 pln jam type 5

2шт.

7

145763C1

ROD

ASSY, steering, Composed of

1шт.

414-1056

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

5/8-NF x 3-1/2 type 5

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

9

145764C1

WASHER, thrust

2шт.

10

55656C1

WASHER, rod

1шт.

11

26276R1

BOLT

7/8 x 11 PHC type 8

1шт.

12

17241R1

SCREW, 7/8 x 7-1/2 cap

1шт.

21624R1

LOCK NUT,7/8"-9

NUT, 7/8 znd hv-thin torque lock

2шт.

13

56492C1

STAKE

2шт.

433142

BOLT

7/16 x 4-1/2 pln type 5

4шт.

271500

SOCKET

7/16 pln type 5

4шт.

14

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

cover

2шт.

16

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.
