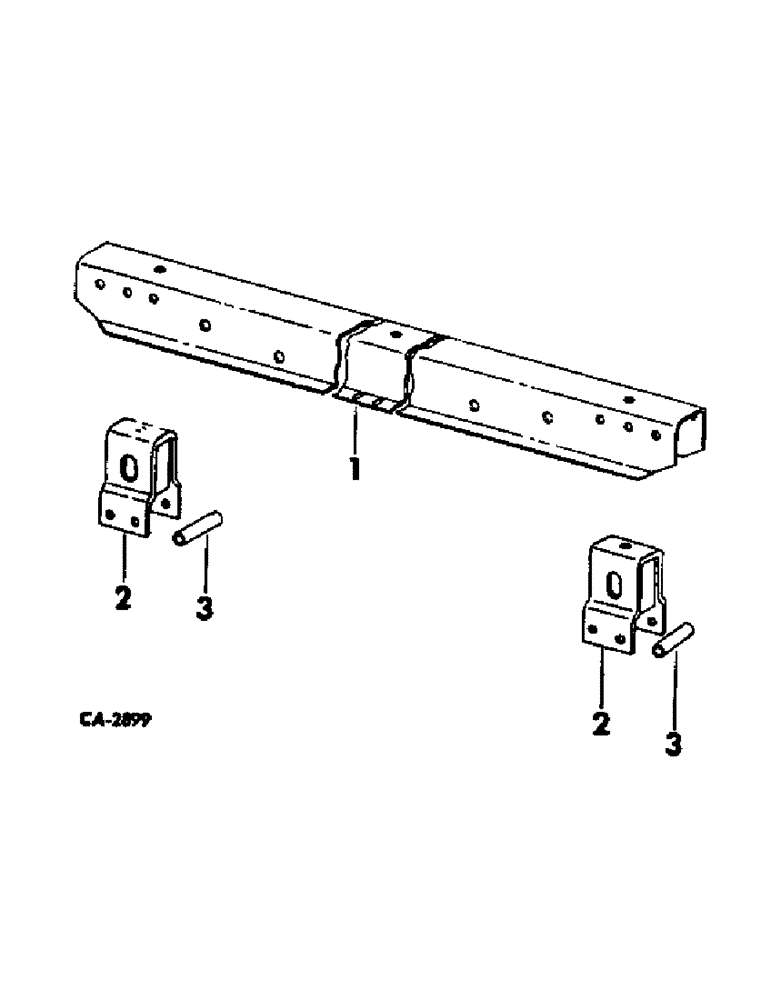

Запчасти Case IH VARIOUS (D-39) - BOLSTER

1

56279C1

BOLSTER

2шт.

2

56280C1

RISER

4шт.

433142

BOLT

SCREW, 7/16-14 x 4-1/2 hex-hd cp

12шт.

9413954

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

12шт.

3

56493C1

SPACER, tube, Front bolster only

2шт.

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 hex-hd cap, Course Threads

2шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

2шт.

77583C91

PACKAGE

IH trademark, large size, product graphic, Consists of

1шт.

IH TRADEMARK, 6.58 x 7.09 (NSS), product graphic

2шт.

IH TRADEMARK, 7.68 x 8.27 (NSS), product graphic

2шт.

IH TRADEMARK, 10.24 x 11.02 (NSS), product graphic

2шт.

77582C91

PACKAGE

IH trademark, medium size, product graphic, Consists of

1шт.

IH TRADEMARK, 3.66 x 3.94 (NSS), product graphic

2шт.

IH TRADEMARK, 4.39 x 4.72 (NSS), product graphic

2шт.

IH TRADEMARK, 5.48 x 5.91 (NSS), product graphic

2шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, Consists of

1шт.

IH TRADEMARK, 1.46 x 1.57 (NSS), product graphic

2шт.

IH TRADEMARK, 2.19 x 2.36 (NSS), product graphic

2шт.

IH TRADEMARK, 2.93 x 3.15 (NSS), product graphic

2шт.

547495R92

DECAL KIT

PACKAGE, International, For bed machines, Consists of

1шт.

INTERNATIONAL, 8.56 x .56 (NSS), product graphic

2шт.

INTERNATIONAL, 14.06 x .94 (NSS), product graphic

2шт.

INTERNATIONAL, 23.13 x 1.50 (NSS), product graphic

2шт.

INTERNATIONAL, 35.12 x 2.25 (NSS), product graphic

2шт.

547497R92

DECAL

PACKAGE, model designation, For bed machines, Consists of

1шт.

MODEL DESIGNATION, 8.78 x 2.45 (NSS), product graphic

2шт.

MODEL DESIGNATION, 14.08 x 4.50 (NSS), product graphic

2шт.

MODEL DESIGNATION, 20.04 x 7.57 (NSS), product graphic

2шт.

MODEL DESIGNATION, 15.20 x 7.56 (NSS), product graphic

2шт.

547496R92

DECAL

PACKAGE, International, For yellow machines, Consists of

1шт.

INTERNATIONAL, 8.50 x .50 (NSS), product graphic

2шт.

INTERNATIONAL, 17.00 x 1.00 (NSS), product graphic

2шт.

INTERNATIONAL, 23.00 x 1.38 (NSS), product graphic

2шт.

INTERNATIONAL, 35.00 x 2.12 (NSS), product graphic

2шт.

547498R92

DECAL

PACKAGE, model designation, For yellow machines, Consists of

1шт.

MODEL DESIGNATION, 12.20 x 3.00 (NSS), product graphic

2шт.

MODEL DESIGNATION, 15.80 x 4.68 (NSS), product graphic

2шт.
