(D-38) - HITCH TONGUE, BUILT 1980 & SINCE

Запчасти Case IH VARIOUS (D-38) - HITCH TONGUE, BUILT 1980 & SINCE

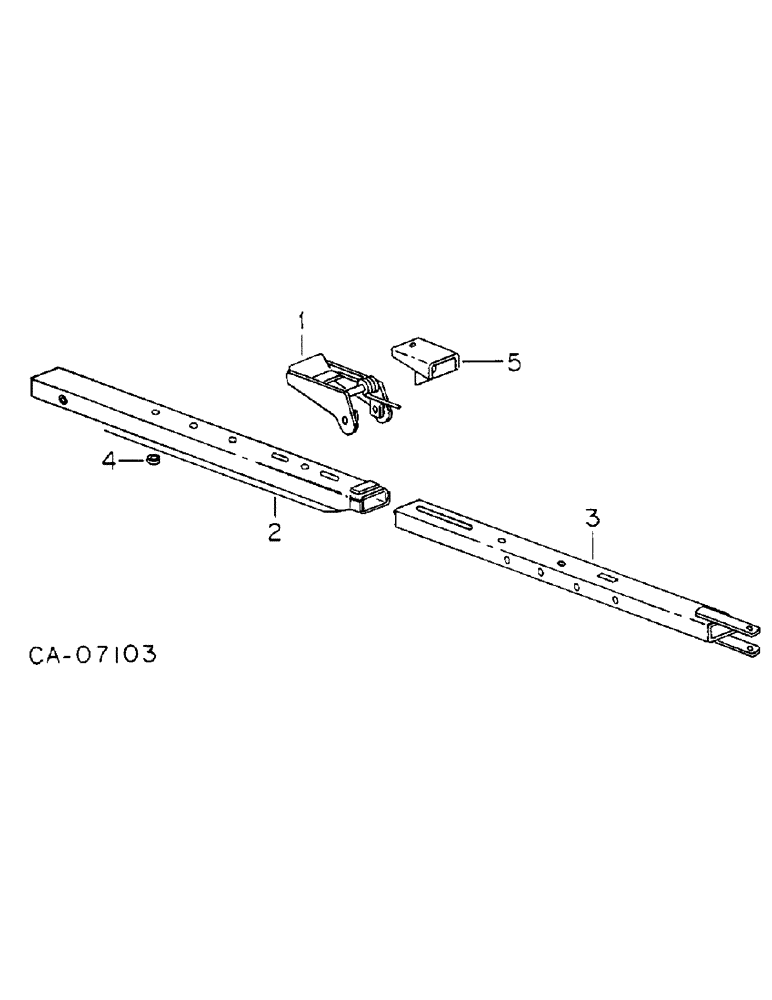

Схема запчастей Case IH VARIOUS - (D-38) - HITCH TONGUE, BUILT 1980 & SINCE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

79186C1

LATCH

1шт.

17171R1

SCREW,Hex, 5/8" - 11 x 6 1/2", Gr 5

5/8-11 x 6-1/2 hex-hd cap

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

1шт.

2

79185C1

TONGUE, outer

1шт.

3

79184C1

TONGUE, inner

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

1шт.
