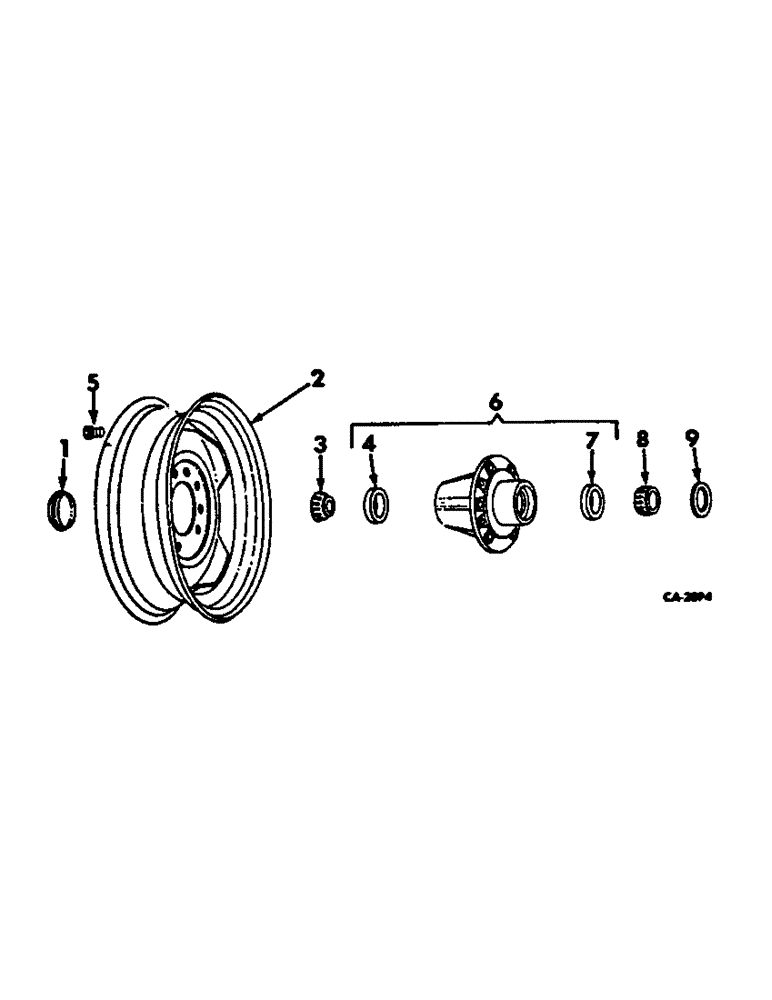

Запчасти Case IH VARIOUS (D-36) - WHEEL AND HUB ASSY

1

491716R1

CAP

hub

4шт.

2

56281C1

WHEEL, 15 X 10 lb, Recommend 11L-15 8 ply rated tire

4шт.

2

400519R1

WHEEL, WH7B-20, Recommend 9.00-20 10 ply rated tire

4шт.

2

491718R1

WHEEL, WH10L-16, Recommend 12.5L-16 8 ply rated tire

4шт.

3

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING ASSY, outer cone

4шт.

4

165964R1

BEARING CUP

BEARING, outer cup

4шт.

5

56047C1

BOLT,9/16" - 18 x 1 11/16", Class 3

wheel, 8 per wheel

1шт.

6

491714R91

HUB W/BRG CUPS, wheel, Includes ref. nos. 4 and 7

4шт.

7

ST987

BEARING CUP

BEARING, inner cup

4шт.

8

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

BEARING ASSY, inner cone

4шт.

9

491715R91

OIL SEAL

oil

4шт.
