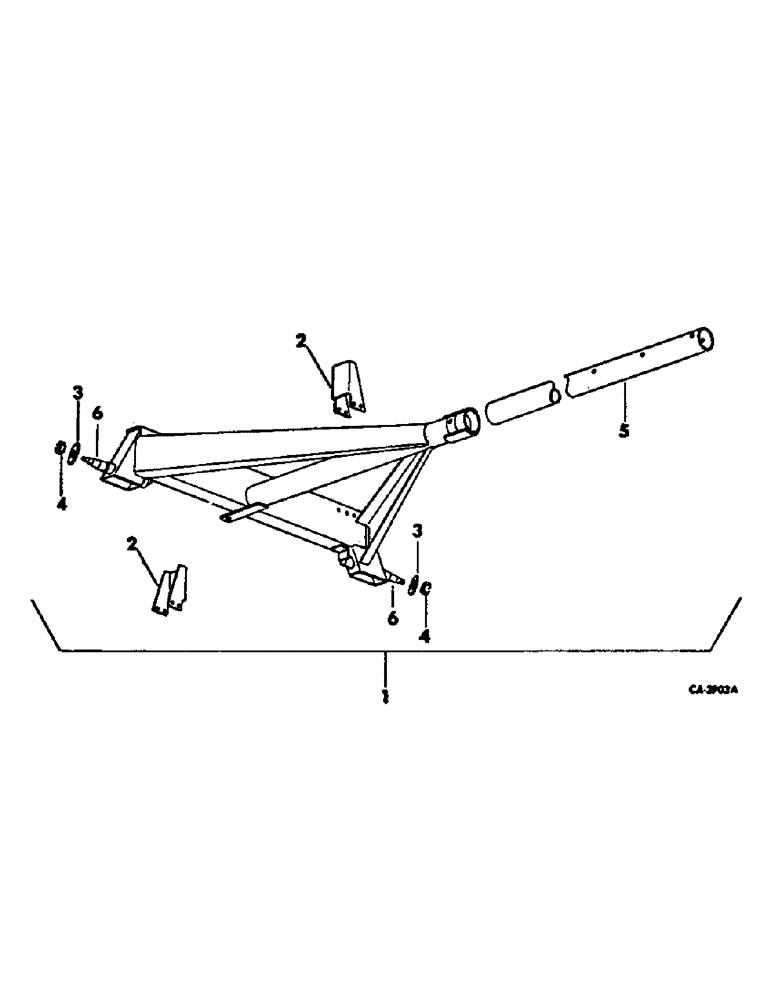

Запчасти Case IH VARIOUS (D-35) - REAR AXLE ASSY

1

56045C91

AXLE ASSY, rear, Includes ref. nos. 2, 3, 4, 6 and attaching hardware

1шт.

2

56492C1

STAKE

2шт.

433142

BOLT

SCREW, 7/16-14 x 4-1/2 hex-hd cap

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

4шт.

3

56034C1

WASHER

spindle

2шт.

4

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

5

55927C1

REACH, 91 in.

1шт.

5

55928C1

REACH, 198 in. extension, for 17 ft to 20 ft wheel base

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 hex-hd cap

2шт.

271574

BEARING ASSY

SCREW, 5/8-11 x 5 hex-hd cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

3шт.
