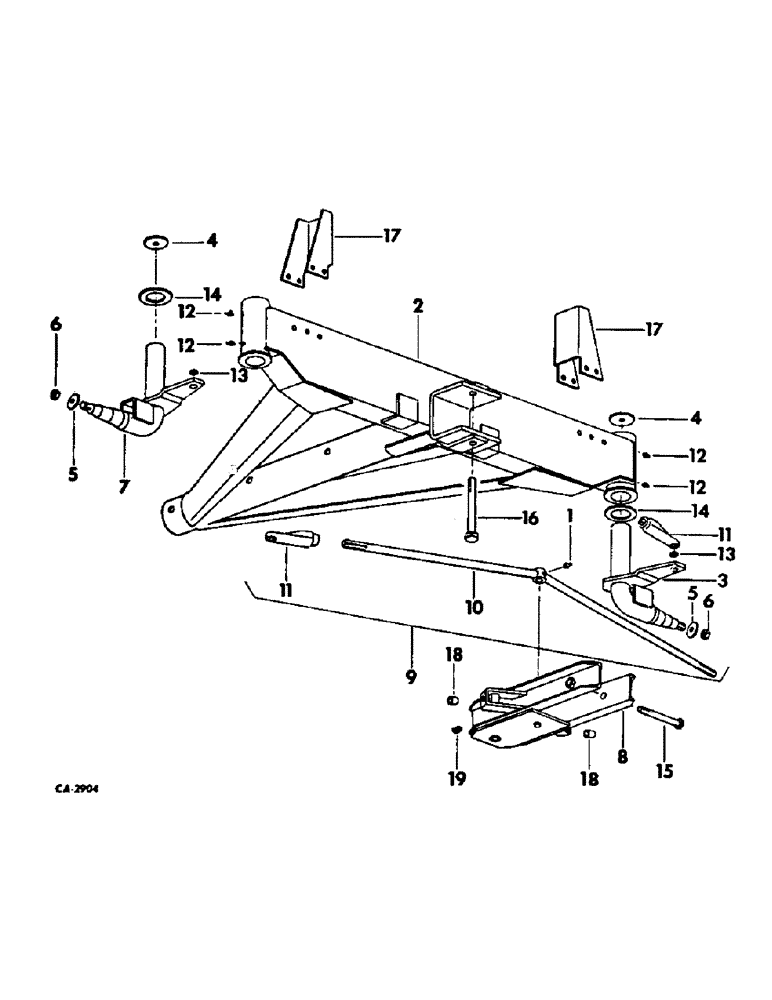

Запчасти Case IH VARIOUS (D-33) - FRONT AXLE ASSY

55929C91

AXLE ASSY, front, On order for 55929C91, furnish component parts

1шт.

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

2

56031C1

AXLE, front

1шт.

3

56032C91

SPINDLE ASSY, LH, Composed of:

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

56033C1

WASHER

1шт.

56034C1

WASHER

1шт.

4

56033C1

WASHER, cover

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

2шт.

5

56034C1

WASHER

spindle

2шт.

6

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

7

56035C91

SPINDLE ASSY, RH, Composed of:

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

56033C1

WASHER

1шт.

56034C1

WASHER

1шт.

8

56036C1

TRAILER HITCH

HITCH

1шт.

58656C1

WASHER, spindle

1шт.

9413962

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 hex. lock

1шт.

56277C1

BOLT, extension

2шт.

218443

NUT

3/4 pln jam type 5

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

271754

BOLT,Hex, 5/8" - 18 x 3 1/2", Gr 5

NUT

2шт.

271754

BOLT,Hex, 5/8" - 18 x 3 1/2", Gr 5

NUT, 7/8-14 hex. jam

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

5шт.

14

56044C1

WASHER, thrust

2шт.

15

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 hex-hd cap queen bolt

1шт.

9413962

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 hex lock

2шт.

16

17241R1

SCREW, 7/8-9 x 7-1/2 hex-hd cap, hitch

1шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

1шт.

17

56492C1

STAKE

2шт.

433142

BOLT

SCREW, 7/16-14 x 4-1/2 hex-hd cap

4шт.

271500

SOCKET

7/16-14 hex.

4шт.

18

56276

EXTENSION, steering stop

2шт.

56277C1

BOLT, extension

2шт.

218443

NUT

3/4-10 hex. jam

2шт.

19

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 NS angle lub

1шт.
