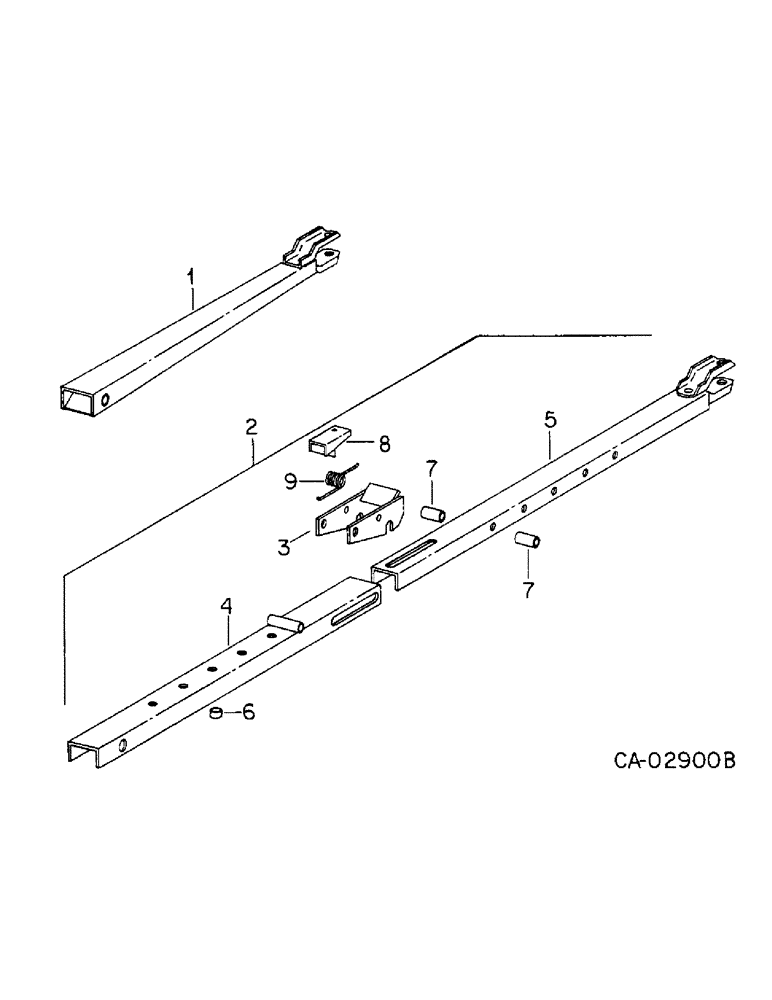

Запчасти Case IH VARIOUS (D-30) - HITCH POLES

1

56024C1

POLE, hitch

1шт.

2

POLE ASSY, telescoping, Not serviced separately, Order component parts

1шт.

3

55796C1

LATCH

1шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

1шт.

4

55797C1

BODY

outer

1шт.

5

55798C1

BODY, inner

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

1шт.

118670

WASHER, .688 x 1.750 x .108

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

1шт.

7

55800C1

SPACER

1/2 x 7/8 pipe

2шт.

18610R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

SCREW, 5/8-11 x 6 hex-hd cap

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

1шт.

77583C91

PACKAGE

IH trademark, large size, product graphic, Consists of:

1шт.

IH TRADEMARK, 6.58 x 7.09 (NSS), product graphic

2шт.

IH TRADEMARK, 7.68 x 8.27 (NSS), product graphic

2шт.

IH TRADEMARK, 10.24 x 11.02 (NSS), product graphic

2шт.

77582C91

PACKAGE

IH trademark, medium size, product graphic, Consists of:

1шт.

IH TRADEMARK, 3.66 x 3.94 (NSS), product graphic

2шт.

IH TRADEMARK, 4.39 x 4.72 (NSS), product graphic

2шт.

IH TRADEMARK, 5.48 x 5.91 (NSS), product graphic

2шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, Consists of:

1шт.

IH TRADEMARK, 1.46 x 1.57 (NSS), product graphic

2шт.

IH TRADEMARK, 2.19 x 2.36 (NSS), product graphic

2шт.

IH TRADEMARK, 2.93 x 3.15 (NSS), product graphic

2шт.

547495R92

DECAL KIT

PACKAGE, International name product graphics

1шт.

547497R92

DECAL

PACKAGE, model designation product graphics

2шт.
