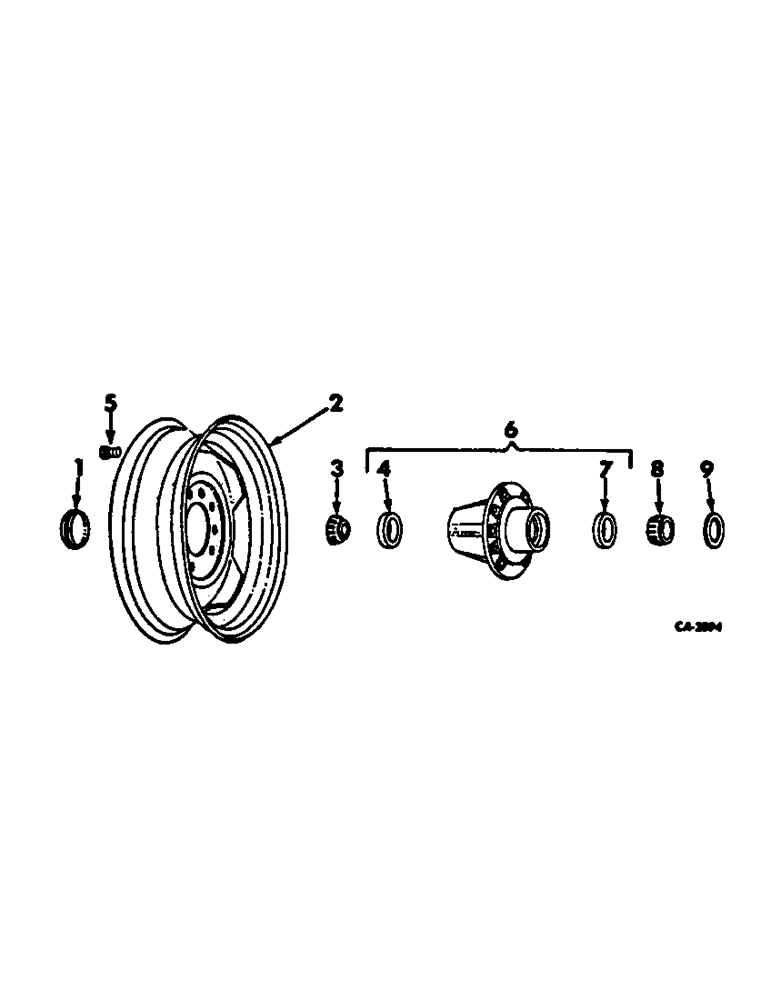

Запчасти Case IH VARIOUS (D-29) - WHEEL AND HUB ASSY

1

614406R1

CAP

hub

4шт.

2

614424R91

WHEEL ASSY.

WHEEL, 15 X 6 lb, Recommend 7.60-15 8 ply rated tire

4шт.

2

486101R1

RIM

WHEEL, 15 X 8 lb, Recommend 10.00-15 8 ply rated tire

4шт.

2

542957R1

RIM

WHEEL, 15 X 10 lb, Recommend 11L-15 8 ply rated tire

4шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, outer cone

4шт.

4

651817R1

BEARING CUP

BEARING, outer cup

4шт.

5

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel, 6 per wheel

1шт.

6

161001C92

HUB

W/BRG CUPS, wheel, Includes ref. nos. 4 and 7, Wagons w/serial no. 2123 and below

4шт.

6

56023C91

HUB W/BRGS CUPS, wheel, Order hub, 61800C91, Includes ref. nos. 4 and 7, Wagons w/serial no., Serial Range: 2124-3625

4шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner, Wagons w/serial no. 2123 and below

4шт.

7

478793R1

BEARING CUP

BEARING, inner cup, Wagons w/serial no., Serial Range: 2124-3625

4шт.

7

61801C1

BEARING CUP,63mm OD x 13.5mm W

BEARING, inner cup, Wagons w/serial no. 3626 and above

4шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, inner cone, Wagons w/serial no. 2123 and below

4шт.

8

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

inner cone, Wagons w/serial no. 2124 to 3625

4шт.

8

61802C91

ROLLER BEARING,38mm ID x 17mm Thk

BEARING ASSY, inner cone, Wagons w/serial no. 3626 and above

4шт.

9

55865C1

OIL SEAL

oil, Wagons w/serial no. 2123 and below

4шт.

9

56514C91

SEAL, oil, Wagons w/serial no. 2124 and above

4шт.
