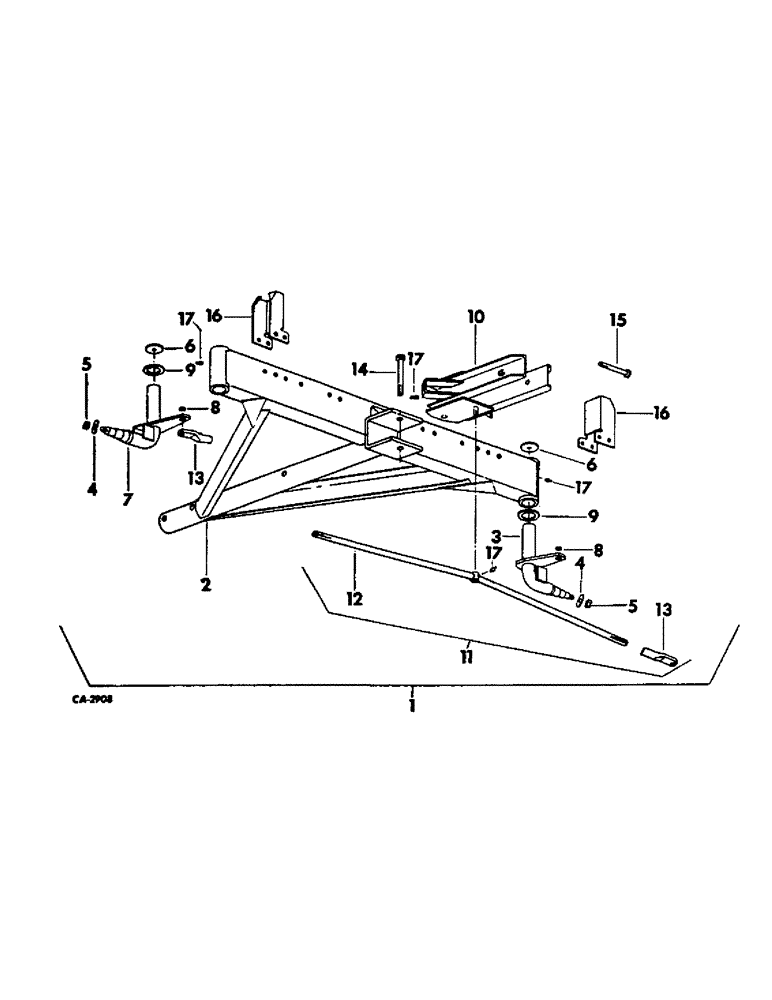

Запчасти Case IH VARIOUS (D-27) - FRONT AXLE ASSY

1

56025C91

AXLE ASSY, front, Includes ref. nos. 2 throught 17, Wagons w/serial no. 2123 and below

1шт.

2

56026C1

AXLE

front

1шт.

3

56027C91

SPINDLE ASSY, LH, Includes ref. nos. 4, 5, 6, and bolt/18788R1 and pin/103397, Wagons w/serial no. 2123 and below

1шт.

3

61796C91

SPINDLE ASSY, LH, Replaces 60054C91 serial nos. 2124 to 3625 by also ordering hub, 61800C91, Includes ref. nos. 4, 5, 6 and bolt/18788R1 and pin/103397

1шт.

4

55936C1

WASHER

spindle

2шт.

5

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

6

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

cover

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

2шт.

7

56028C91

SPINDLE ASSY, RH, Includes ref. nos. 4, 5, 6 and bolt/18788R1 and pin/103397, Wagons w/serial no. 2123 and below

1шт.

10

55807C1

TRAILER HITCH

HITCH

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

414-1056

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

NUT

2шт.

414-1056

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

NUT, 7/8-14 hex. jam

2шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

2шт.

9413962

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 hex. lock

1шт.

138561

LOCK WASHER,Int Tooth, 3/4"

WASHER, 3/4 int. lock

1шт.

15

56273C1

BOLT

queen

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

1шт.

18804R1

BOLT,Hex, 7/16"-14 x 4", G2

7/16 x 4 type 1

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

4шт.

17

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

5шт.
