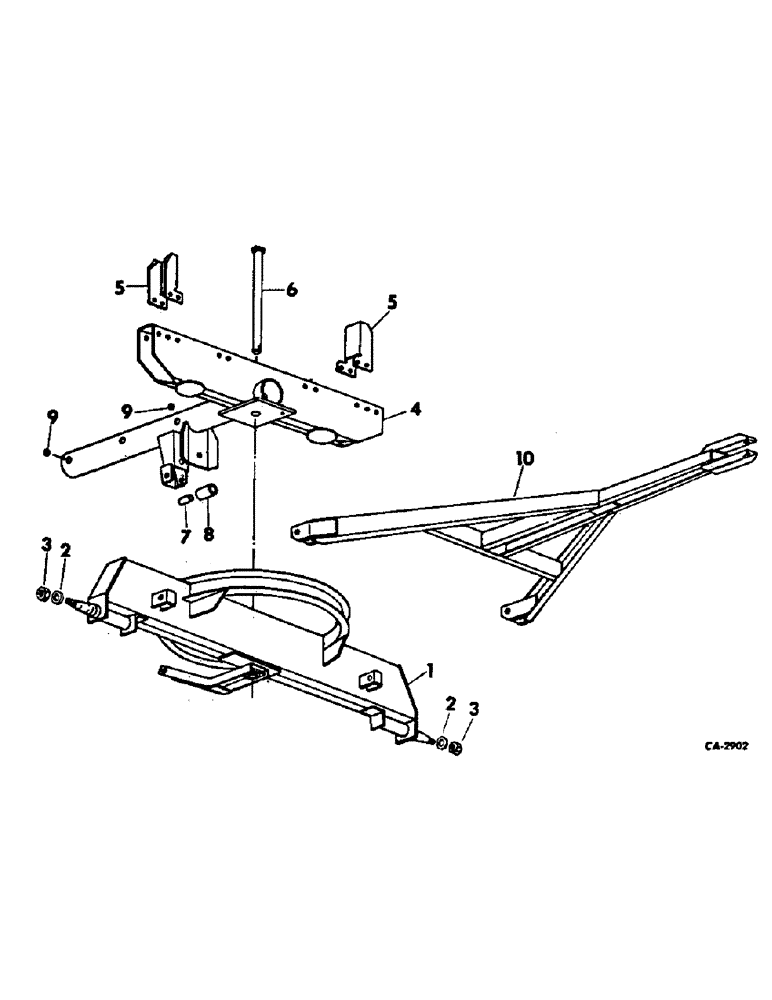

Запчасти Case IH VARIOUS (D-21) - AXLE AND FIFTH WHEEL ASSY

1

55935C91

AXLE & FIFTH WHEEL ASSY, front, Composed of:

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

55936C1

WASHER

2шт.

2

55936C1

WASHER

spindle

2шт.

3

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt-hex.

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

4

55937C1

BOLSTER, front

1шт.

219-7

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, 1/8 PTF str lub

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 PTF angle lub

1шт.

55931C1

SCREW, 5/8-11 x 5 hex-hd cap

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

4шт.

6

55939C1

PIN, king

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

7

56020C1

BUSHING

1шт.

8

56021C1

ROLLER

1шт.

9413962

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 hex. lock

1шт.

271619

CIRCLIP

3/4-10 x 4 hex-hd cap

1шт.

55931C1

SCREW, 5/8-11 x 5 hex-hd cap

2шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

2шт.

10

55924C1

POLE, hitch

1шт.

271617

O-RING

SCREW, 3/4-10 x 3-1/2 hex-hd cap

2шт.

218443

NUT

3/4-10 hex. jam

2шт.
