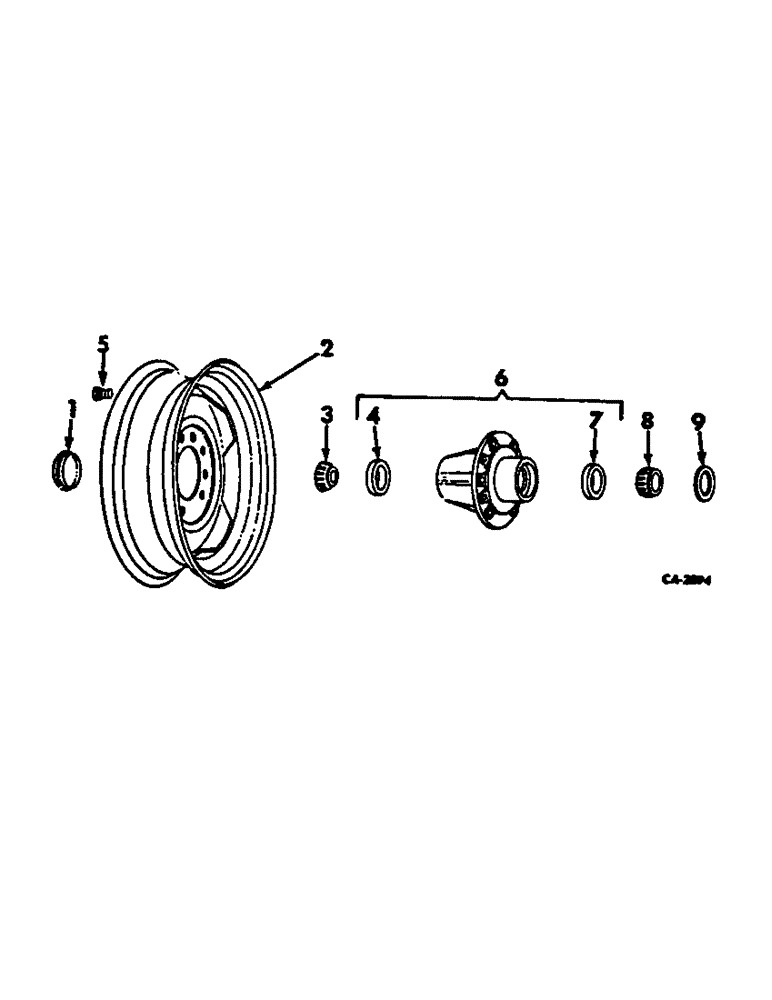

Запчасти Case IH VARIOUS (D-18) - WHEEL AND HUB ASSY

2

55818C1

WHEEL, 15 X 5 KB, Recommend 6.40-15, 6.70-15 6 ply rated tire, Serial no. 2752 & below

4шт.

2

79171C1

WHEEL, 15 X 5 KB, Recommend 6.40-15, 6.70-15 6 ply rated tire, Serial no. 2753 & above

4шт.

2

55867C1

WHEEL, 15 X 8 lb, Recommend 10.00-15 8 ply rated tire, Serial no. 2752 & below

4шт.

2

79172C1

WHEEL, 15 X 8 lb, Recommend 10.00-15 8 ply rated tire, Serial no. 2753 & above

4шт.

3

572563R1

ROLLER BEARING,27 mm ID x 50.317 mm OD x 14.732 mm

CONE #L44649

4шт.

4

572564R1

BEARING CUP

BEARING, outer cup

4шт.

5

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel, 5 per wheel

1шт.

6

55864C91

HUB

W/BRG CUPS, Includes ref. nos. 4 and 7, Serial no. 2752 & below

4шт.

6

79174C91

HUB

W/BRG CUPS, Includes ref. nos. 4 and 7, Serial no. 2753 & above

4шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

4шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, inner cone

4шт.

9

55865C1

OIL SEAL

oil

4шт.

77583C91

PACKAGE

IH trademark, large size, product graphic, Consists of:

1шт.

IH TRADEMARK, 6.58 x 7.09, product graphic

2шт.

IH TRADEMARK, 7.68 x 8.27, product graphic

2шт.

IH TRADEMARK, 10.24 x 11.02, product graphic

2шт.

77582C91

PACKAGE

IH trademark, medium size, product graphic, Consists of:

1шт.

IH TRADEMARK, 3.66 x 3.94, product graphic

2шт.

IH TRADEMARK, 4.39 x 4.72, product graphic

2шт.

IH TRADEMARK, 5.48 x 5.91, product graphic

2шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, Consists of:

1шт.

IH TRADEMARK, 1.46 x 1.57, product graphic

2шт.

IH TRADEMARK, 2.19 x 2.36, product graphic

2шт.

IH TRADEMARK, 2.93 x 3.15, product graphic

2шт.

547495R92

DECAL KIT

PACKAGE, International product graphics

1шт.

547497R92

DECAL

PACKAGE, model designation product graphics

1шт.
