Запчасти Case IH VARIOUS (D-18[1]) - REAR AXLE ASSY

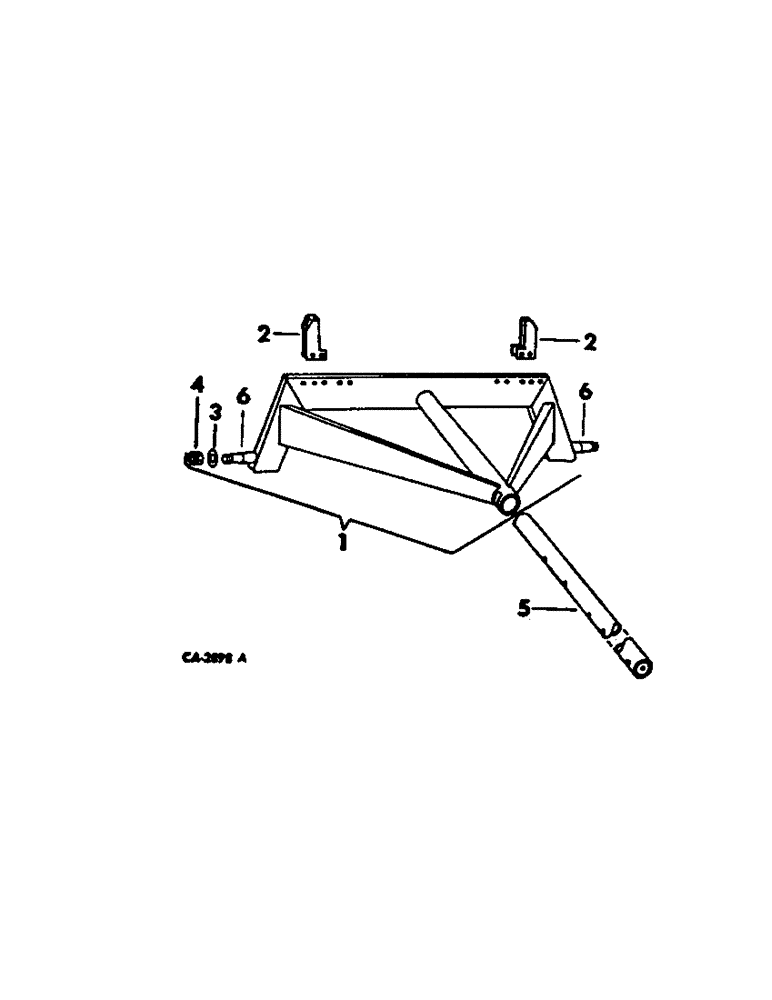

Схема запчастей Case IH VARIOUS - (D-18[1]) - REAR AXLE ASSY

Артикул

Название

Примечание

Количество

77583C91

PACKAGE

IH trademark, large size, product graphic, Consists of:

1шт.

IH TRADEMARK, 6.58 x 7.09, product graphic

2шт.

IH TRADEMARK, 7.68 x 8.27, product graphic

2шт.

IH TRADEMARK, 10.24 x 11.02, product graphic

2шт.

77582C91

PACKAGE

IH trademark, medium size, product graphic, Consists of:

1шт.

IH TRADEMARK, 3.66 x 3.94, product graphic

2шт.

IH TRADEMARK, 4.39 x 4.72, product graphic

2шт.

IH TRADEMARK, 5.48 x 5.91, product graphic

2шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, Consists of:

1шт.

IH TRADEMARK, 1.46 x 1.57, product graphic

2шт.

IH TRADEMARK, 2.19 x 2.36, product graphic

2шт.

IH TRADEMARK, 2.93 x 3.15, product graphic

2шт.

547495R92

DECAL KIT

PACKAGE, International product graphics

1шт.

547497R92

DECAL

PACKAGE, model designation product graphics

1шт.

1

55973C91

AXLE ASSY, rear, Includes ref. nos. 2, 3, 4 and 6

1шт.

17720R1

BOLT, 7/16 x 4 hex-hd mach

4шт.

271500

SOCKET

7/16-14 hex.

4шт.

3

55804C1

WASHER

spindle

2шт.

4

427637

SLOTTED NUT,3/4"-10, G5

NUT, 3/4-16 slt hex.

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

5

55971C1

REACH, 80 in. pipe

1шт.

5

55972C1

REACH, extension pipe, For 16 ft to 19 ft wheel base

1шт.

55931C1

SCREW, 5/8-11 x 5 hex-hd cap

1шт.

55934C1

WASHER, 5/8/ formed

2шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

2шт.

6

59312C91

SPINDLE ASSY, rear, Includes ref. nos. 3 and 4

2шт.

Выбрано товаров: 26
