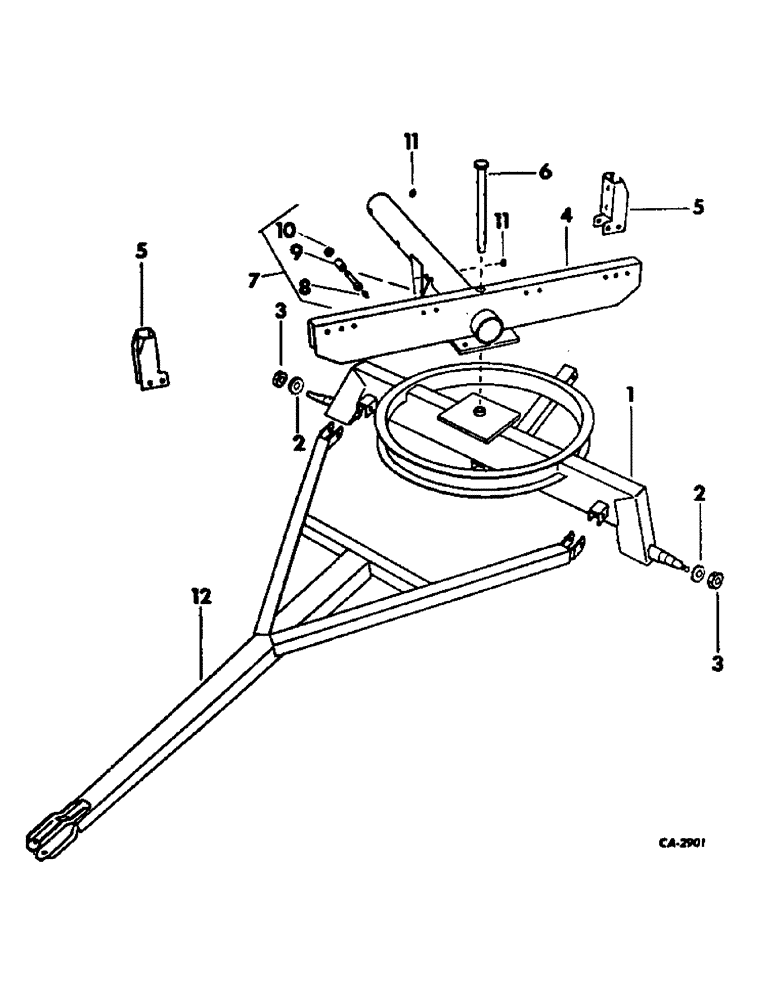

Запчасти Case IH VARIOUS (D-17) - AXLE AND FIFTH WHEEL ASSY

1

55958C91

AXLE & FIFTH WHEEL ASSY, front, Composed of:

1шт.

427637

SLOTTED NUT,3/4"-10, G5

NUT

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

55804C1

WASHER

2шт.

2

55804C1

WASHER

spindle

2шт.

3

427637

SLOTTED NUT,3/4"-10, G5

NUT, 3/4-16 slt-hex.

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

4

55959C1

BOLSTER, front

1шт.

17723R1

BOLT,Hex, 5/8" - 11 x 4"

5/8 x 4 hex-hd mach

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

1шт.

17720R1

BOLT, 7/16 x 4 hex-hd mach

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

4шт.

6

55960C1

PIN, king

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF angle lub

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

55961C1

WASHER, king pin

1шт.

7

55962C91

BOLT ASSY, Includes ref. nos. 8, 9 and 10

1шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

9

55963C1

ROLLER

1шт.

10

9413962

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 hex. lock

1шт.

271572

O-RING,Hex, 5/8" - 11 x 4 1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 hex-hd cap

2шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

2шт.

12

56275C1

POLE, extra long hitch draw bar

1шт.

17677R1

BOLT (SPREADER),Hex, 5/8" - 11 x 3 1/2", Gr 2

BOLT, 5/8 x 3-1/2 hex-hd mach

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.
