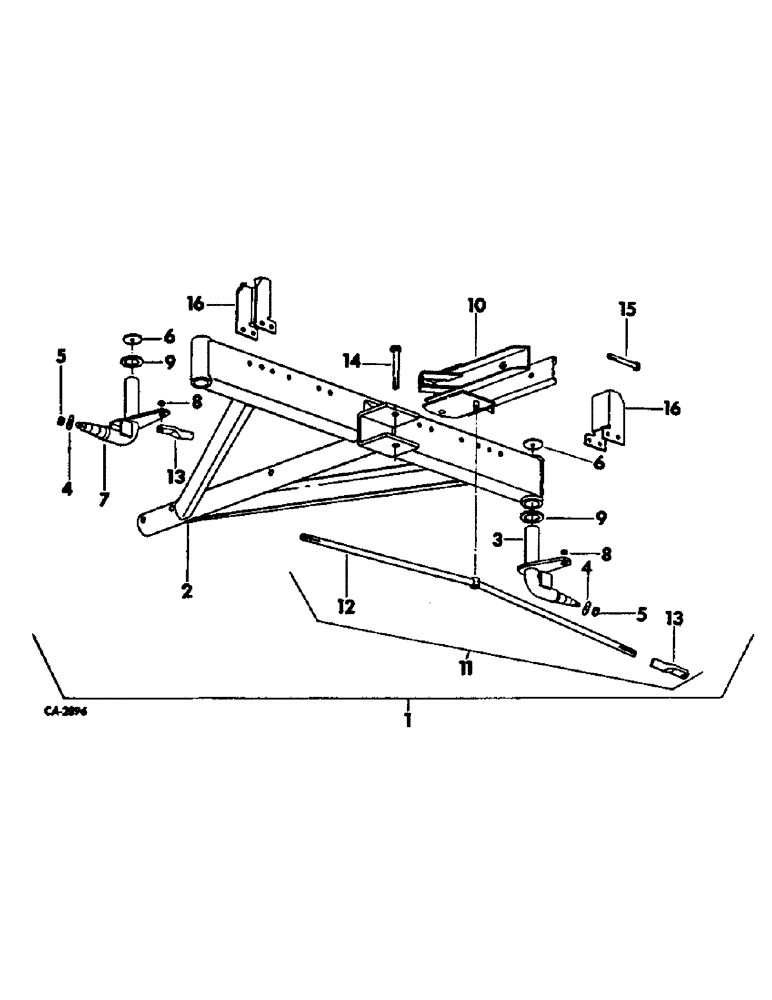

Запчасти Case IH VARIOUS (D-11) - FRONT AXLE ASSY
№
Артикул
Название
Примечание
Количество
1
55801C91
AXLE ASSY, front, On orders for 55801C91 furnish component parts
1шт.
2
55802C1
AXLE
1шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
2шт.
3
55803C91
SPINDLE ASSY, LH, Composed of:
1шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT
1шт.
427639
SLOTTED NUT,3/4"-16, G5
NUT
1шт.
103397
COTTER PIN,5/32" x 1 1/4"
Pin, Split (Cotter), 5/32" x 1 1/4"
1шт.
55804C1
WASHER
1шт.
55805C1
WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk
13/32 x 2-1/2 x 5/32
1шт.
4
55804C1
WASHER
spindle
2шт.
5
427639
SLOTTED NUT,3/4"-16, G5
NUT, 3/4-16 slt hex.
2шт.
103397
COTTER PIN,5/32" x 1 1/4"
Pin, Split (Cotter), 5/32" x 1 1/4"
2шт.
6
55804C1
WASHER
cover
2шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT, 3/8 x 3/4 znd hex-hd mach
2шт.
7
55806C91
SPINDLE ASSY, RH, Composed of:
1шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT
1шт.
427639
SLOTTED NUT,3/4"-16, G5
NUT
1шт.
103397
COTTER PIN,5/32" x 1 1/4"
Pin, Split (Cotter), 5/32" x 1 1/4"
1шт.
55804C1
WASHER
1шт.
55805C1
WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk
13/32 x 2-1/2 x 5/32
1шт.
10
55807C1
TRAILER HITCH
HITCH
1шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
102639
NUT,5/8"-11, G5
1шт.
114507
JAM NUT,Jam, 5/8"-11, G5
1шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
1шт.
425-1514
JAM NUT,Jam, 7/8"-14, G5
2шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
219754
BACK-UP RING
7/8-14 hex. jam
2шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 x 2 hex-hd cap
2шт.
9413960
LOCK NUT,5/8"-11, GB
NUT, 5/8-11 hex. lock
2шт.
9413962
LOCK NUT,3/4"-10, GB
NUT, 3/4-10 hex. lock
1шт.
138561
LOCK WASHER,Int Tooth, 3/4"
WASHER, 3/4 int lock
1шт.
15
56273C1
BOLT
queen
1шт.
9413960
LOCK NUT,5/8"-11, GB
NUT, 5/8-11 hex. lock
1шт.
18804R1
BOLT,Hex, 7/16"-14 x 4", G2
7/16 x 4 type 1
4шт.
NLS
NO LONGER SERVICED
7/16-14 hex.
4шт.
Выбрано товаров: 36
