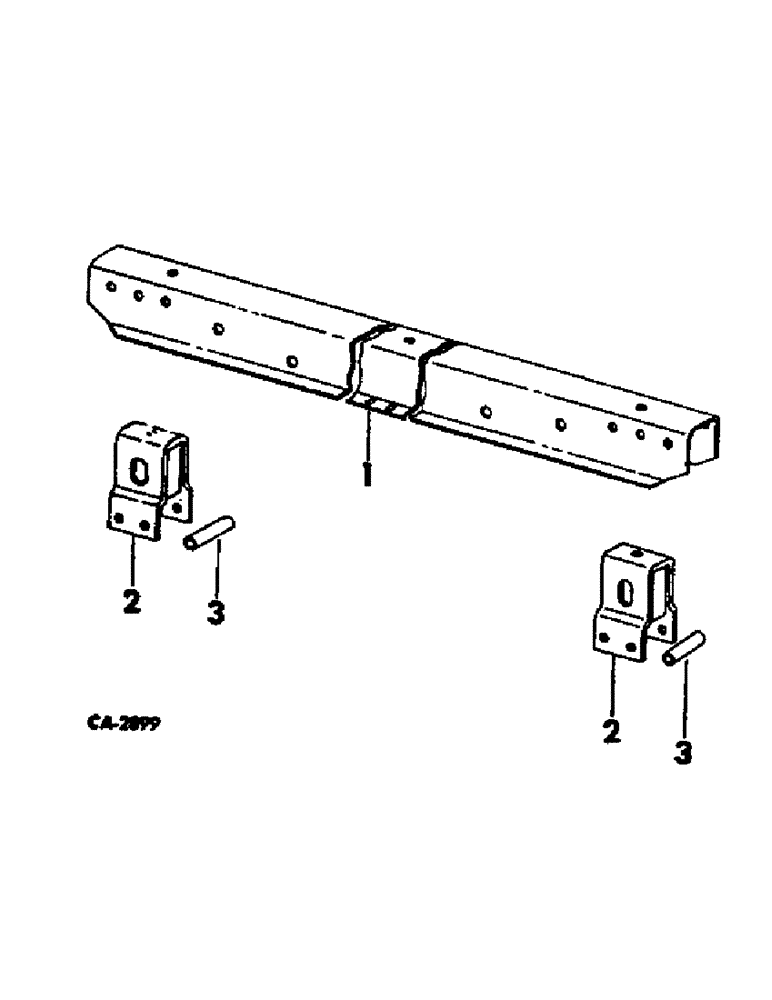

Запчасти Case IH VARIOUS (D-08) - BOLSTER, PRODUCT GRAPHICS

1

55792C1

BOLSTER

2шт.

2

55793C1

RISER

4шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

271500

SOCKET

7/16-14 hex.

8шт.

3

11136F

SPACER, 1/2 x 2-19/32 std pipe, Front bolster only

2шт.

179896

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

77583C91

PACKAGE

IH trademark, large size, product graphics, Consists of:

1шт.

IH TRADEMARK, 6.58 x 7.09 (NSS), product graphics

2шт.

IH TRADEMARK, 7.68 x 8.27 (NSS), product graphics

2шт.

IH TRADEMARK, 10.24 x 11.02 (NSS), product graphics

2шт.

77582C91

PACKAGE

IH trademark, medium size, product graphics, Consists of:

1шт.

IH TRADEMARK, 3.66 x 3.94 (NSS), product graphics

2шт.

IH TRADEMARK, 4.39 x 4.72 (NSS), product graphics

2шт.

IH TRADEMARK, 5.48 x 5.91 (NSS), product graphics

2шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, product graphics, Consists of:

1шт.

IH TRADEMARK, 1.46 x 1.57 (NSS), product graphics

2шт.

IH TRADEMARK, 2.19 x 2.36 (NSS), product graphics

2шт.

IH TRADEMARK, 2.93 x 3.15 (NSS), product graphics

2шт.

547495R92

DECAL KIT

PACKAGE, Internation name, product graphics, Consists of:

1шт.

INTERNATIONAL, 8.56 x .56 (NSS), product graphics

2шт.

INTERNATIONAL, 14.06 x .94 (NSS), product graphics

2шт.

INTERNATIONAL, 23.12 x 1.50 (NSS), product graphics

2шт.

INTERNATIONAL, 35.12 x 2.25 (NSS), product graphics

2шт.

547497R92

DECAL

PACKAGE, model designation, product graphics, Consists of:

1шт.

MODEL DESIGNATION, 8.78 x 2.45 (NSS), product graphics

2шт.

MODEL DESIGNATION, 14.08 x 4.50 (NSS), product graphics

2шт.

MODEL DESIGNATION, 20.04 x 7.57 (NSS), product graphics

2шт.

MODEL DESIGNATION, 15.20 x 7.56 (NSS), product graphics

2шт.
