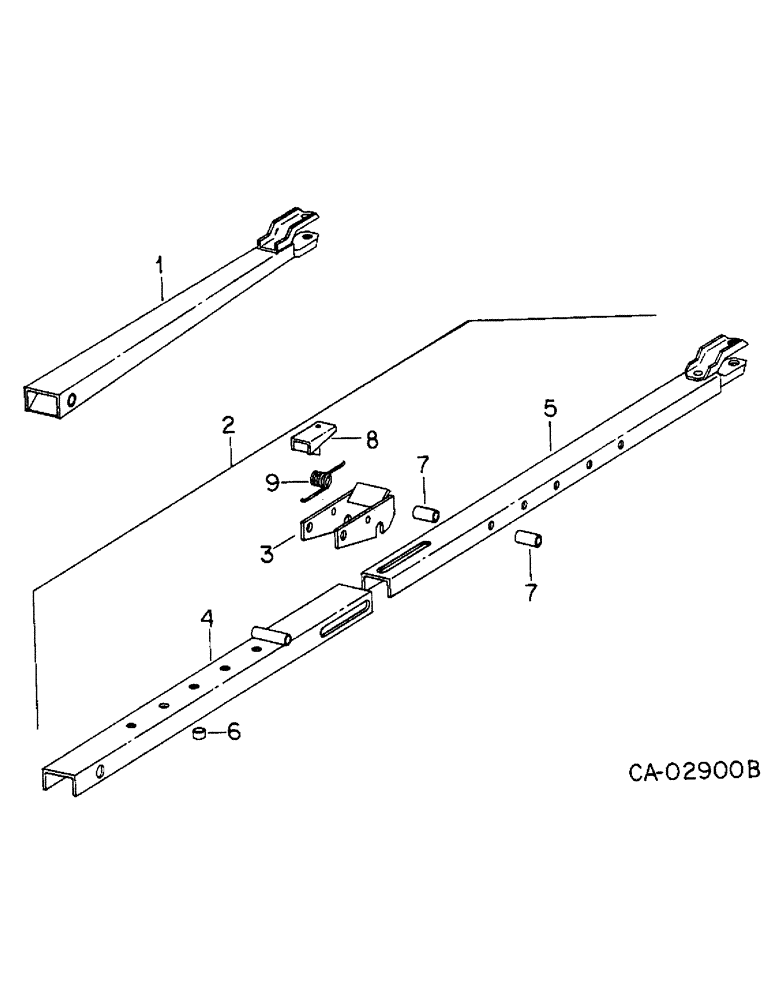

Запчасти Case IH VARIOUS (D-07) - HITCH POLES

1

55653C1

POLE, hitch

1шт.

2

POLE ASSY, telescoping, Not serviced separately, Order component parts

1шт.

3

55796C1

LATCH

1шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

1шт.

4

55797C1

BODY

outer

1шт.

5

55798C1

BODY, inner

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

1шт.

118670

WASHER, .688 x 1.750 x .108

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

1шт.

7

55800C1

SPACER

1/2 x 7/8 pipe

2шт.

18610R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

SCREW, 5/8-11 x 6 hex-hd cap

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

1шт.
