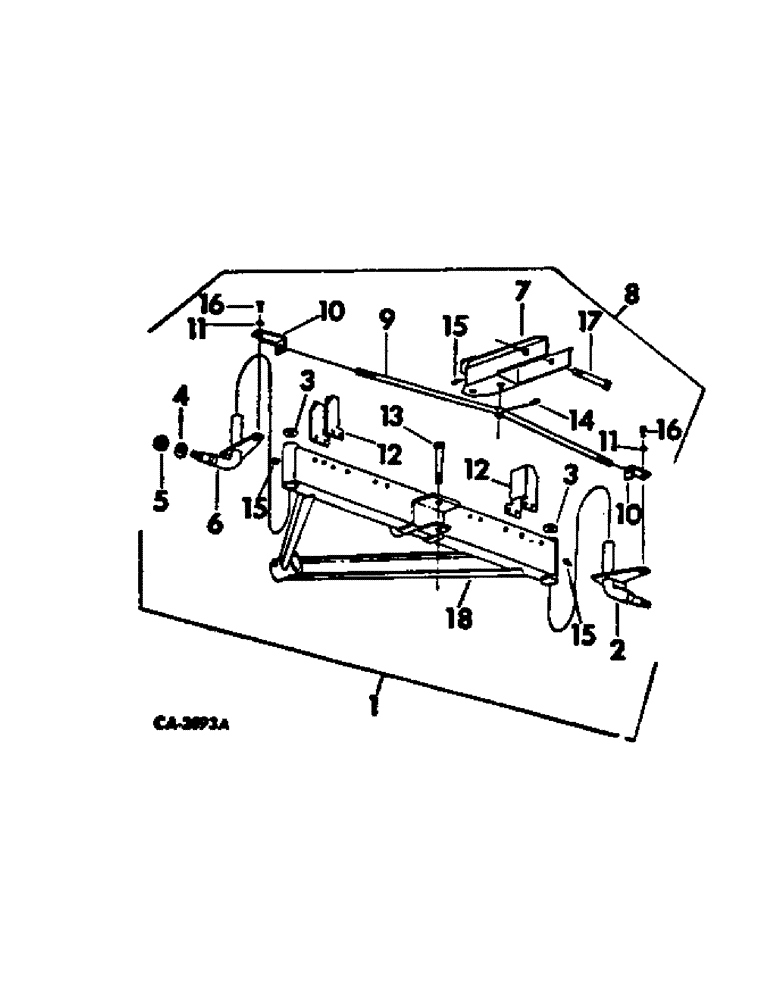

Запчасти Case IH VARIOUS (D-05) - FRONT AXLE ASSY

1

55658C91

AXLE ASSY, front, On orders 55658C91 furnish component parts

1шт.

2

55659C91

SPINDLE ASSY, LH, Includes ref. nos. 3, 4, 5 and bolt/18788R1 and pin/103397

1шт.

3

55780C1

WASHER, cover

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

2шт.

4

55656C1

WASHER, spindle

2шт.

5

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex.

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

6

55781C91

SPINDLE ASSY, RH, Includes ref. nos. 3, 4, 5 and bolt/18788R1 and pin/103397

1шт.

7

55782C1

HITCH

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

1шт.

8

55789C91

ROD

ASSY, steering, Composed of:

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

218443

NUT

4шт.

218443

NUT

3/4-10 hex. jam

4шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

4шт.

9413962

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 hex. lock

1шт.

138561

LOCK WASHER,Int Tooth, 3/4"

WASHER, 3/4 int-tooth lock

1шт.

495-21081

WASHER,3/4"

.812 x 2 x .122 znd

1шт.

14

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

15

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 self tap lub

3шт.

16

55923C1

BOLT, steering arm

2шт.

106639

BEARING CONE

NUT, 5/8-11 hex.

2шт.

17

18610R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

SCREW, 5/8-11 x 6 hex-hd cap

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

1шт.

18

59309C91

AXLE, front

1шт.
