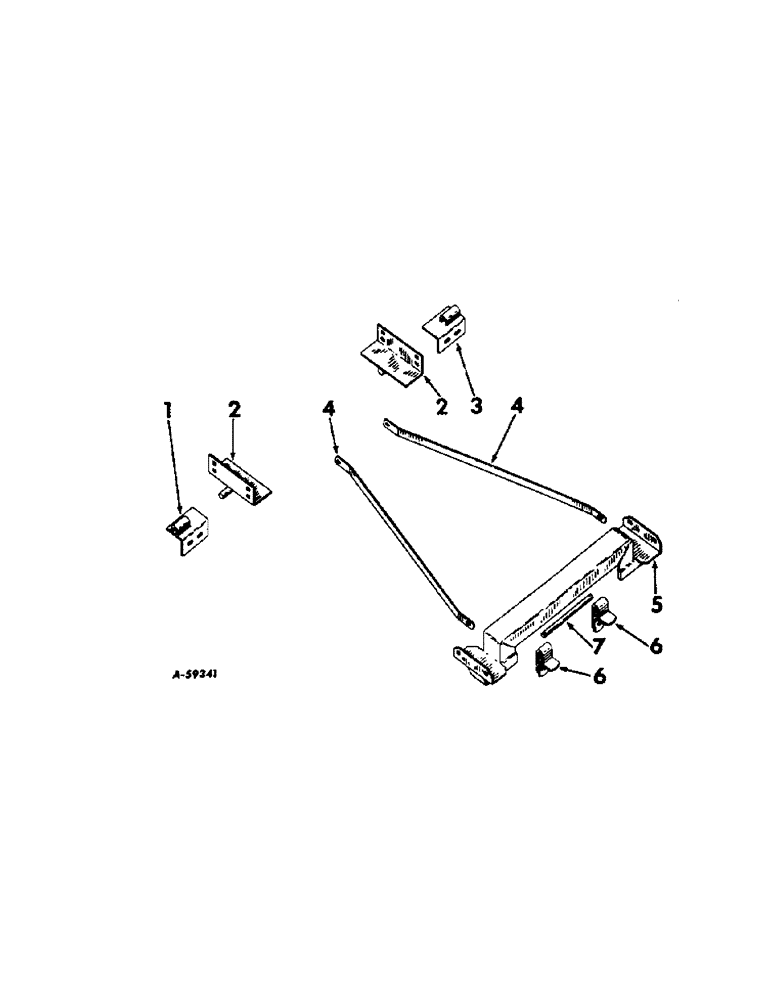

Запчасти Case IH VARIOUS (C-45) - HOIST EQUIPMENT, BASIC HOIST EQUIPMENT, HEAVY DUTY

461775R91

MOUNTING UNIT, Consists of the following:

1шт.

1

461790R91

HINGE, pivot RH

1шт.

BOLT, 1/2 x 4 hex-hd mach

4шт.

NUT, 1/2 lock

4шт.

2

461791R91

HINGE, rear

1шт.

BOLT W/NUT, 3/8 x 1 crg

8шт.

WASHER, 3/8 lock

8шт.

3

461789R91

HINGE, pivot, LH

1шт.

4

461798R1

BRACE, rods

2шт.

BOLT W/NUT, 1/2 x 1-1/2 hex-hd mach

2шт.

PIN, 1/4 x 1-1/4 cotter

2шт.

PIN, 3/4 x 2 dld std-hd

2шт.

WASHER, 1/2 lock

2шт.

5

481451R91

YOKE, lifting, Will work for 461784R91

1шт.

BOLT W/NUT, 5/16 x 1 crg

4шт.

WASHER, 5/16 lock

4шт.

6

461777R1

BRACKET, front mounting

2шт.

BOLT W/NUT, 1/2 x 4-1/4 hex-hd mach

1шт.

WASHER, 1/2 lock

2шт.

7

461776R1

PIN, hoist yoke

1шт.

PIN, 1/4 x 1-1/4 cotter

2шт.
