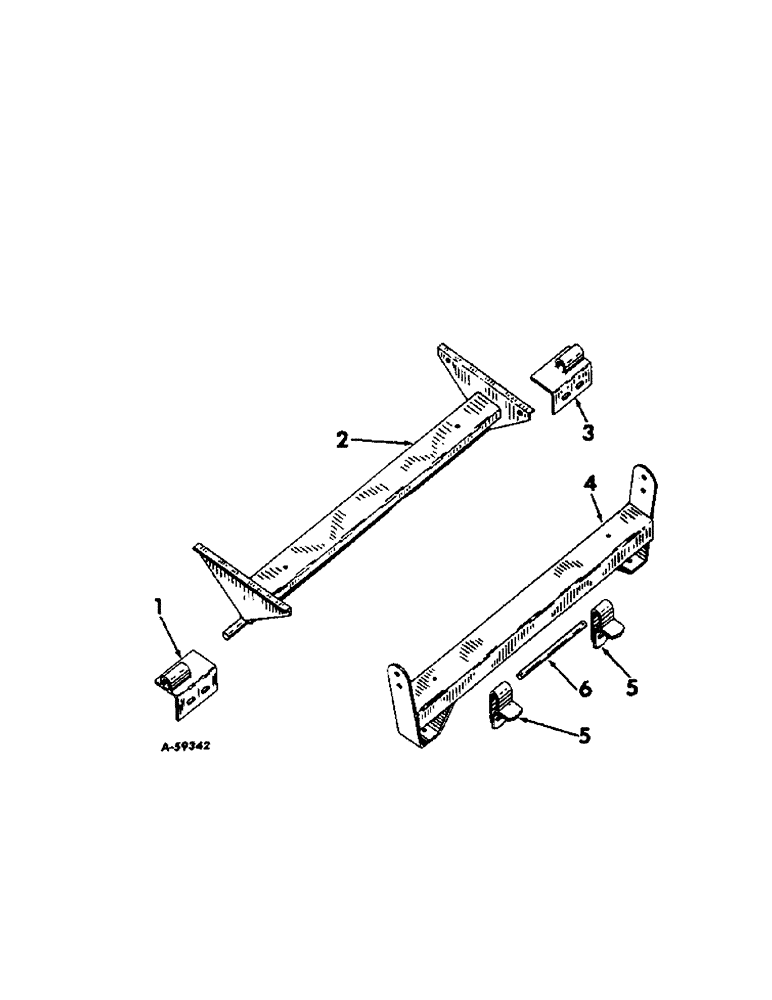

Запчасти Case IH VARIOUS (C-45[1]) - HOIST EQUIP., FOR USE WITH REACH POLE TRACTOR TRAILERS WITHOUT BOLSTER AND NO. 100 GRAIN BOX

461928R91

MOUNTING UNIT, Consists of the following:

1шт.

1

461790R91

HINGE, pivot RH

1шт.

BOLT, 1/2 x 4 hex-hd mach

4шт.

NUT, 1/2 lock

4шт.

2

461943R91

HINGE, rear

1шт.

BOLT W/NUT, 3/8 x 1 hex-hd mach

4шт.

WASHER, 3/8 lock

4шт.

WASHER, 13/32 x 3/4 x 16 ga

2шт.

3

461789R91

HINGE, pivot LH

1шт.

4

461942R91

YOKE, high flare

1шт.

BOLT W/NUT, 3/8 x 1 hex-hd mach

4шт.

WASHER, 3/8 lock

4шт.

5

461777R1

BRACKET, front mounting

2шт.

BOLT W/NUT, 1/2 x 4-1/4 hex-hd mach

2шт.

WASHER, 1/2 lock

2шт.

6

461776R1

PIN, hoist yoke

1шт.

PIN, 1/4 x 1-1/4 cotter

2шт.
