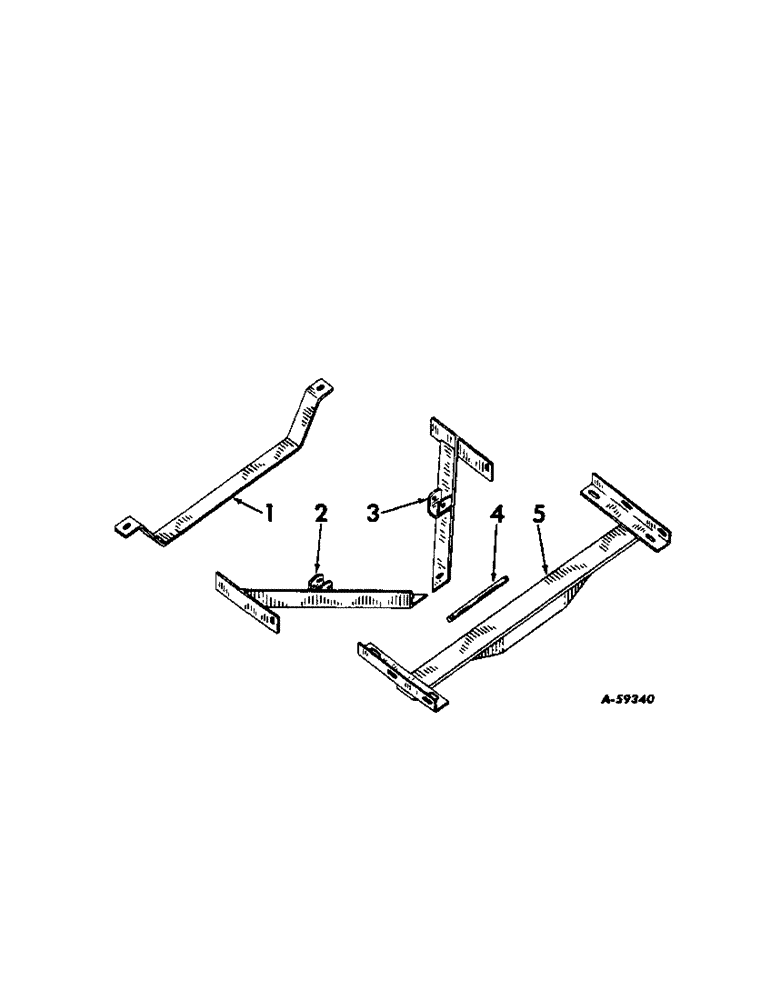

Запчасти Case IH VARIOUS (C-44[1]) - HOIST, USE W/NO 100 TRCTR TRLR NO 15 WAGON BOX, FOR COMPAR COMPET TRCTR TRLRS AND BARGE-TYPE BOXES

461774R91

MOUTING UNIT, Consists of the following:

1шт.

1

461788R1

BAR, hoist support

1шт.

BOLT, 1/2 x 1-1/2 hex-hd mach

2шт.

NUT, 1/2 lock

2шт.

2

461800R91

BRACE, angle RH

1шт.

BOLT W/NUT, 1/2 x 1-1/2 crg

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg

1шт.

BOLT, 1/2 x 1-1/4 hex-hd mach

1шт.

PIN, 3/16 x 2 cotter

1шт.

WASHER, 1/2 lock

2шт.

WASHER, 5/8 lock

1шт.

3

461799R91

BRACE, angle LH

1шт.

BOLT W/NUT, 1/2 x 1-1/2 crg

1шт.

BOLT W/NUT, 1/2 x 2-1/2 c-z crg

2шт.

BOLT W/NUT, 5/8 x 1-3/4 crg

1шт.

BOLT W/NUT, 1/2 x 1-1/4 hex-hd mach

1шт.

PIN, 3/16 x 2 cotter

1шт.

WASHER, 1/2 lock

2шт.

WASHER, 5/8 lock

1шт.

WASHER, 9/16 x 1-1/4 x 20 ga c-z

2шт.

4

461776R1

PIN, hoist yoke

1шт.

PIN, 1/4 x 1-1/4 cotter

2шт.

5

461805R91

YOKE, lifitng

1шт.

BOLT, 1/2 x 1-1/4 hex-hd mach

4шт.

NUT, 1/2 lock

4шт.
