Запчасти Case IH VARIOUS (C-42) - HOIST EQUIPMENT, HYDRAULIC CYLINDER, SINGLE ACTING

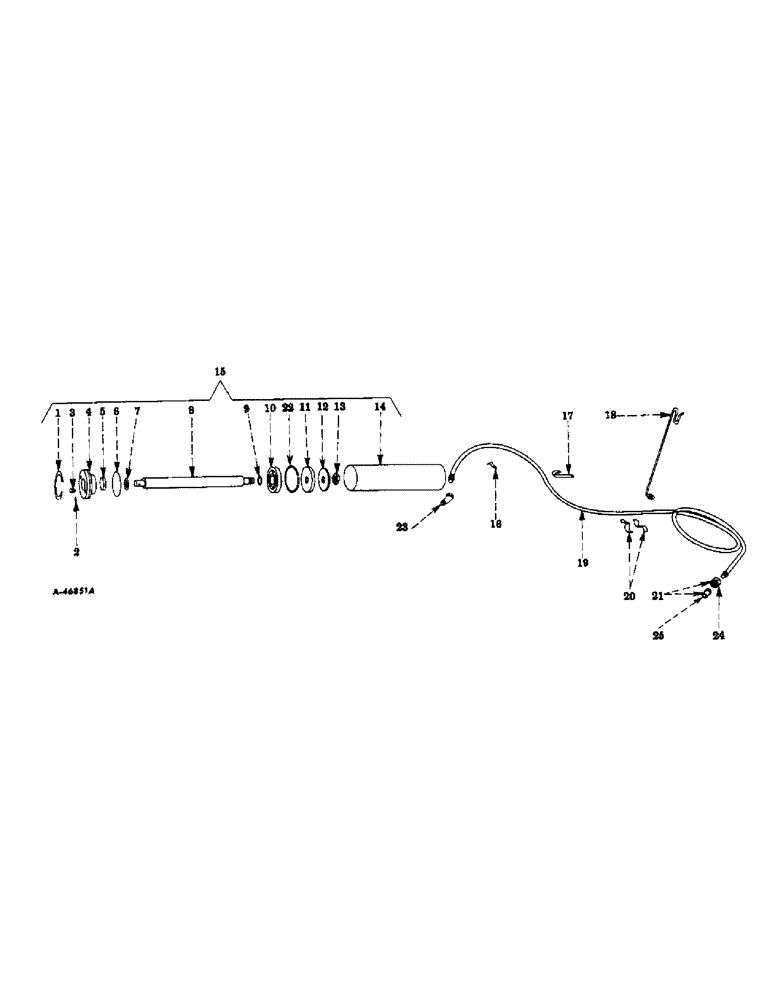

Схема запчастей Case IH VARIOUS - (C-42) - HOIST EQUIPMENT, HYDRAULIC CYLINDER, SINGLE ACTING

Артикул

Название

Примечание

Количество

1

458409R1

RING, SNAP

SNAP RING, internal

1шт.

2

458411R1

RETAINER, gland

1шт.

SCREW, 5/16 x 3/4 hex-hd cap

1шт.

3

458408R1

PLUG, cylinder breather

1шт.

4

458406R1

GLAND, hydraulic cylinder, Serial Range: 1956-1959

1шт.

4

461780R1

GLAND, hydraulic cylinder, 1959 and since

1шт.

5

458410R1

SEAL, piston ram wiper

1шт.

6

458405R1

SEAL, hydraulic cylinder gland, Serial Range: 1956-1959

1шт.

6

461781R1

SEAL

hydraulic cylinder gland, 1959 and since

1шт.

7

458407R1

SEAL, shaft and gland o-ring

1шт.

8

458400R1

SHAFT, hydraulic cylinder, Serial Range: 1956-1959

1шт.

NUT, 1-1/4 jam

1шт.

8

461785R1

SHAFT, hydraulic cylinder, Note A, 1959 and since

1шт.

NUT, 1-1/4 jam

1шт.

8

461779R1

SHAFT, hydraulic cylinder, Note B, 1959 and since

1шт.

NUT, 1-1/4 jam

1шт.

9

458404R1

SEAL, ram and piston o-ring

1шт.

10

458403R1

PISTON, hydraulic cylinder, Serial Range: 1956-1959

1шт.

10

461782R1

PISTON, hydraulic cylinder, 1959 and since

1шт.

11

458402R1

SEAL, piston cup, Serial Range: 1956-1959

1шт.

11

461940R1

SEAL, piston cup, Note A, 1959 and since

1шт.

11

461941R1

SEAL, piston cup, Note B, 1959 and since

1шт.

12

458401R1

PLATE, follower

1шт.

13

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

1-1/4 jam

1шт.

14

461786R91

BASE, cylinder, Note A

1шт.

BOLT W/NUT, 3/8 x 1-1/2 hex-hd mach

1шт.

14

461778R91

BASE, cylinder, Note B

1шт.

BOLT W/NUT, 3/8 x 1-1/2 hex-hd mach

1шт.

15

458398R91

CYLINDER, hydraulic hoist, Serial Range: 1956-1959

1шт.

15

461802R91

CYLINDER, hydraulic hoist, Note A, 1959 and since

1шт.

15

461803R91

CYLINDER, hydraulic hoist, Note B, 1959 and since

1шт.

16

458141R1

CLAMP, hydraulic hose sill

1шт.

BOLT W/NUT, 1/2 x 3 hex-hd mach

1шт.

WASHER, 17/32 x 7/8 x 16 ga

2шт.

16

120875

CLAMP, hose support open c-z

1шт.

BOLT W/NUT, 1/4 x 3/4 hex-hd mach

1шт.

WASHER, 1/4 lock

1шт.

17

458413R1

CLAMP, hydraulic hose axle

1шт.

BOLT W/NUT, 3/8 x 1-3/4 hex-hd mach

1шт.

BOLT W/NUT, 1/2 x 1-1/2 crg

1шт.

WASHER, 1/2 lock

1шт.

18

651793R1

SUPPORT

hydraulic hose

1шт.

BOLT W/NUT, 5/8 x 4-1/2 hex-hd mach

1шт.

WSHER, 5/8 lock

1шт.

WASHER, 21/32 x 1-1/4 x 16 ga

1шт.

19

458415R91

HOSE ASSY, hydraulic

1шт.

20

458412R1

CLAMP, hydraulic hose pole

2шт.

BOLT W/NUT, 3/8 x 3/4 hex-hd mach

1шт.

WASHER, 3/8 lock

1шт.

21

458416R91

COUPLING

COUPLER, hydraulic hose, Serial Range: 1956-1959

1шт.

22

461783R1

RING

SEAL, piston hydraulic cylinder

1шт.

23

137893

ELBOW, 1/2 x 45 deg street

1шт.

24

388991R91

COUPLING

ASSY, self-sealing male, 1959 and since

1шт.

25

374783R92

COUPLING

ASSY, self-sealing female, 1959 and since, Used with 1957 model tractors and prior

1шт.

Выбрано товаров: 54
