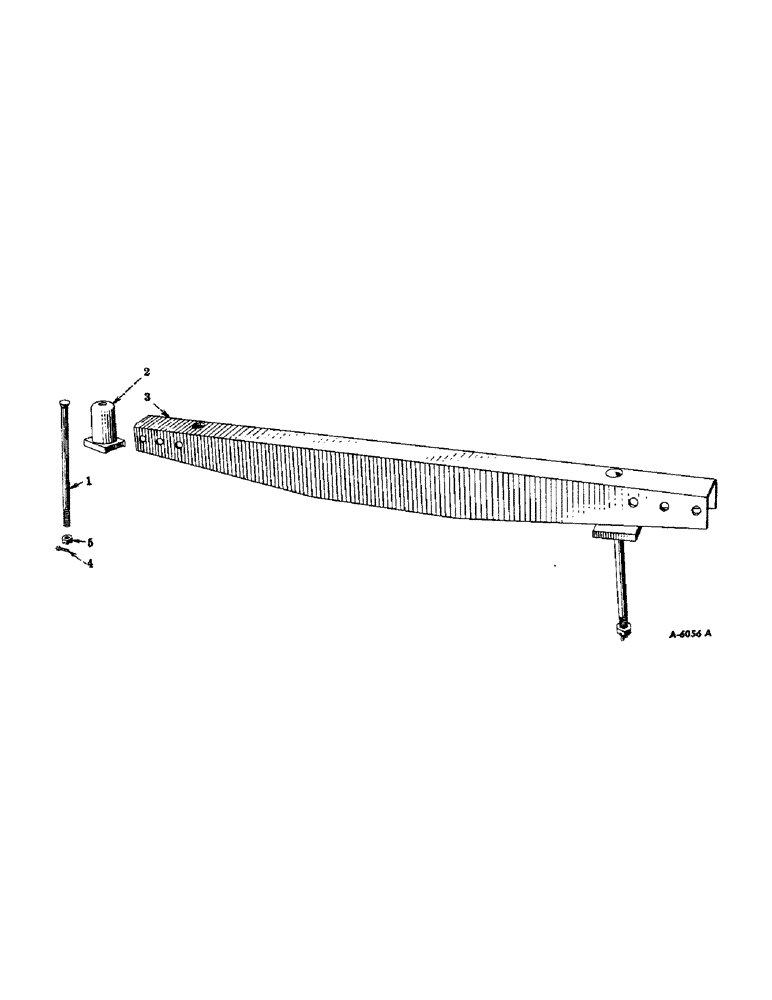

Запчасти Case IH VARIOUS (A-26) - SUPPLEMENTAL BOLSTER ATTACHMENT, SPECIAL

ZMA534

SUPPLEMENTAL BOLSTER ATTACHMENT, special, Consists of the following

1шт.

1

Q5022

BOLT, 5/8-11NC x 13-5/16 no. 3 plow

2шт.

2

695W

SUPPORT, supplemental bolster

2шт.

3

16732W

CHANNEL, supplemental bolster

1шт.

4

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

5

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11NC hex slotted

2шт.
