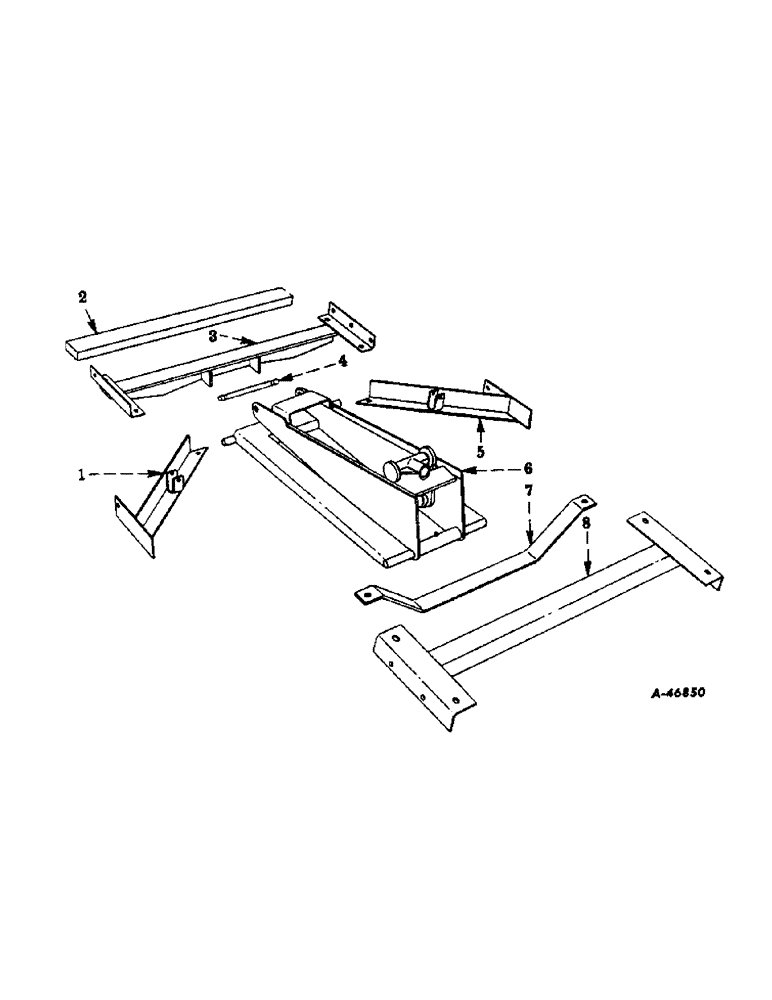

Запчасти Case IH VARIOUS (C-40) - HOIST EQUIPMENT, LIFTING YOKE AND HOIST FRAME

1

458388R92

BRACE, angle LH

1шт.

BOLT W/NUT, 1/2 x 1-1/2 crg

1шт.

BOLT W/NUT, 1/2 x 2-1/2 c-z crg, Note A

2шт.

BOLT, 5/8 x 1-3/4 crg

1шт.

BOLT W/NUT, 1/2 x 1-1/4 hex-hd mach

1шт.

PIN, 3/16 x 2 cot.

1шт.

WASHER, 1/2 lock

2шт.

WASHER, 5/8 lock

1шт.

WASHER, 17/32 x 1-1/4 x 16 ga c-z, Note A

2шт.

2

458393R1

BLOCK, spacer, Note A

1шт.

3

458387R91

YOKE, lifting

1шт.

BOLT W/NUT, 1/2 x 2-1/2 c-z crg, Note A

2шт.

BOLT, 1/2 x 1-1/4 c-z hex-hd mach, Note B

1шт.

NUT, 1/2 c-z lock, Note B

2шт.

WASHER, 17/32 x 1-1/4 x 16 ga c-z, Note A

2шт.

4

458391R1

PIN, hoist yoke

1шт.

5

458389R91

BRACE, angle RH

1шт.

BOLT W/NUT, 1/2 x 1-1/2 crg

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg

1шт.

BOLT W/NUT, 1/2 x 1-1/4 hex-hd mach

1шт.

PIN, 3/16 x 2 cot.

1шт.

WASHER, 1/2 lock

2шт.

WASHER, 5/8 lock

1шт.

6

458390R92

FRAME, hoist

1шт.

PIN, 1/4 x 2 cot.

1шт.

7

458392R1

BAR, hoist support

1шт.

BOLT, 1/2 x 1-1/2 hex-hd mach

2шт.

NUT, 1/2 lock

2шт.

8

458394R91

BRACKET, hinge, Note A

1шт.

BOLT W/NUT, 1/2 x 2-1/2 c-z crg

4шт.

BOLT, 1/2 x 1-1/4 c-z hex-hd mach

4шт.

NUT, 1/2 c-z lock

4шт.
