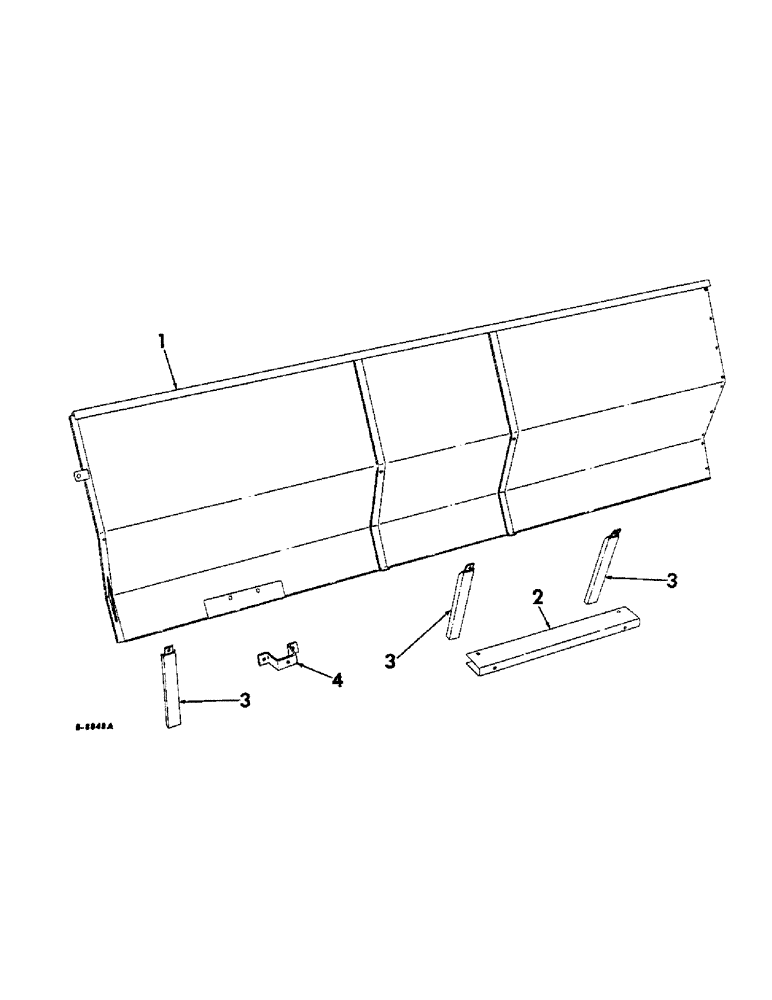

Запчасти Case IH VARIOUS (C-38) - SIDE PANELS AND TIE BARS

1

456310R91

PANEL, left side

1шт.

1

456311R91

PANEL, right side

1шт.

18473R11

BOLT

W/NUT, 5/16-18UNC x 5/8 c-z hex-hd mach

18шт.

18474R11

BOLT

W/NUT, 5/16-18UNC x 1 c-z hex-hd mach

4шт.

18476R11

BOLT W/NUT, 1/2-13UNC x 2-1/2 c-z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

456371R1

SCREW, 3/8-16UNC x 1 c-z slt-rd-hd mach, special head

2шт.

133167

CLAMSHELL BUCKET

SCREW, 3/8-16UNC x 1-1/4 c-z slt-rd-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

22шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 ID x 3/4 OD x 16 ga c-z

4шт.

446230

WASHER

7/16 ID x 1-1/4 OD x 12 ga c-z

4шт.

2

456352R1

CHANNEL, step

2шт.

3

456348R11

TIE BAR

6шт.

17433R11

BOLT W/NUT, 1/2-13UNC x 1 c-z hex-hd mach

2шт.

18476R11

BOLT W/NUT, 1/2-13UNC x 2-1/2 c-z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

446230

WASHER

9/16 ID x 1-1/4 OD x 12 ga c-z

2шт.

4

455566R1

TIE, bolster stake box

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

429109

SCREW, 1/2-13UNC x 1-1/4 c-z slt-rd-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

456678R91

TIE ASSY, bolster stake box, special, For grain box when using solid bolsters on either the no. 6 farm truck, no. 52 tractor trailer or no. 100 heavy duty tractor trailer

1шт.

624933R91

SAFETY LAMP SOCKET UNIT, special, Consists of the following:

1шт.

624932R1

BRACKET, safety lamp mounting , SOCKET UNIT, SPECIAL

1шт.

624341R1

SOCKET

safety lamp , UNIT, SPECIAL

1шт.

14994R11

BOLT,5/16" - 18 x 3/4"

W.NUT, 5/16-18UNC x 3/4 crg , SAFETY LAMP SOCKET UNIT, SPECIAL

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Safety lamp locket unit, Special 5/16"

2шт.

624342R91

TAPE PACKAGE, reflective, Consists of two 2 x 8 in. strips of scotchlight tape or equivalent

1шт.
