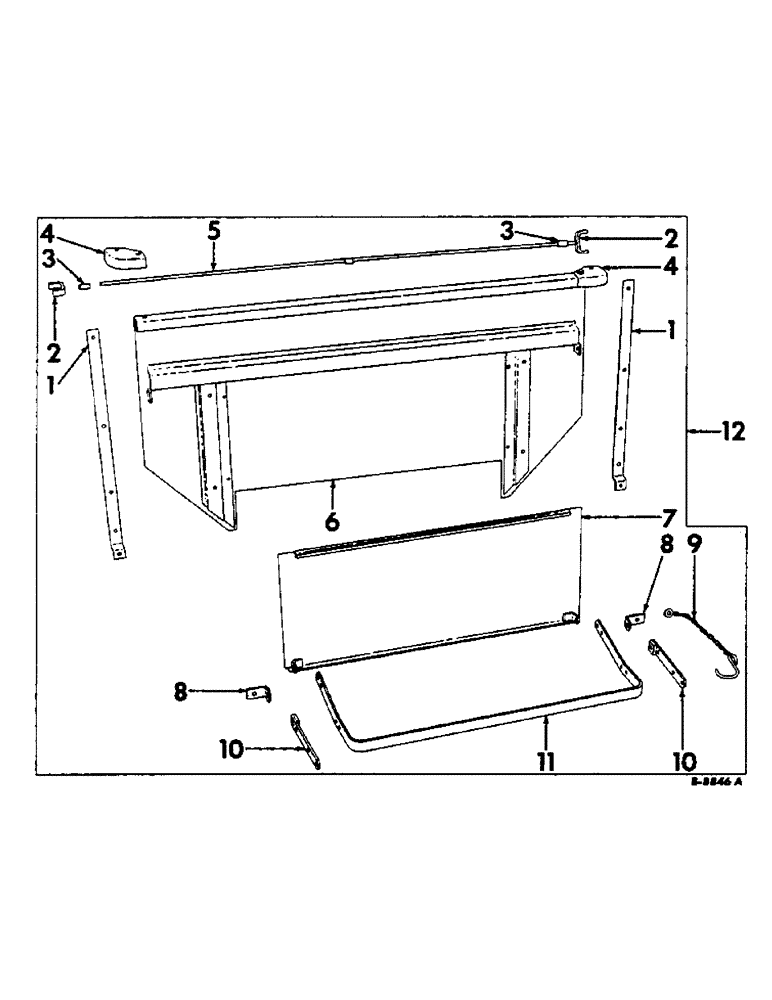

Запчасти Case IH VARIOUS (C-37) - TAILGATE

1

456338R1

BRACKET, flare box guide

2шт.

18474R11

BOLT

W/NUT, 5/16-18UNC c-z hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

456355R1

NUT, grain box tie rod wing

2шт.

3

456347R1

SPACER, tie rod

2шт.

4

455282R1

BRACKET, box corner

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2-13UNC x 1 hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

446230

WASHER

1/2 c-z plain

8шт.

5

456345R11

TIE ROD W/STOP

1шт.

6

456329R91

PANEL, tailgate

1шт.

18474R11

BOLT

W/NUT, 5/16-18UNC x 1 c-z hex-hd mach

3шт.

18475R11

BOLT

W/NUT, 5/16-18UNC x 1-1/4 c-z hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, 1/2 c-z lock

4шт.

7

456336R11

GATE, flare box grain

1шт.

8

456339R1

BRACKET, upper gate lifting

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

457457R1

PIN, 7/16 x 7/8 c-z dld std-hd

2шт.

9

456340R91

CHAIN, grain gate hook

1шт.

NLS

NO LONGER SERVICED

7/16 ID x 1 OD x 16 ga c-z

1шт.

10

456343R11

ARM, flare box gate lifting

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

457457R1

PIN, 7/16 x 7/8 c-z dld std-hd

2шт.

457458R1

PIN, 7/16 x 1-3/16 c-z dld std-hd

2шт.

11

456342R1

BAIL, flare box gate lifting

1шт.

12

456328R91

TAILGATE ASSY

1шт.
