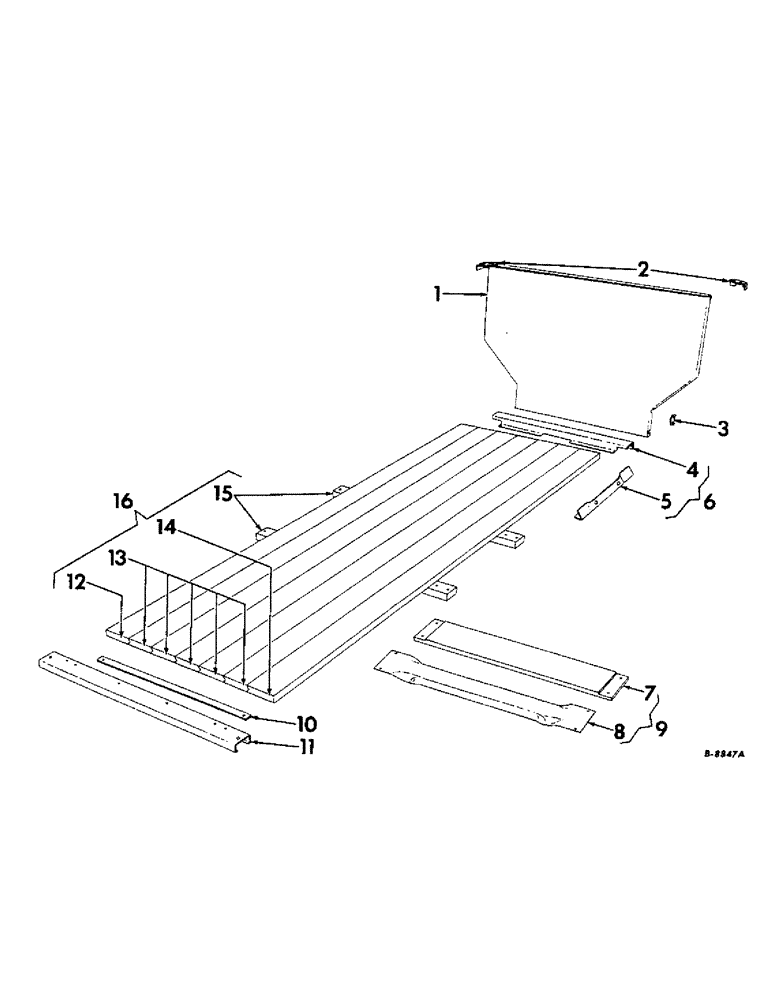

Запчасти Case IH VARIOUS (C-35) - CROSSMEMBERS, FLOOR AND FRONT PANEL

1

456325R91

PANEL, front

1шт.

18482R11

BOLT

5/16-18UNC x 2 c-z crg

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

134238R1

WASHER

11/32 ID x 1 OD x 16 ga c-z

3шт.

2

455282R1

BRACKET, box corner

2шт.

17433R11

BOLT W.NUT, 1/2-13UNC x 1 c-z hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

446230

WASHER

1/2 c-z plain

8шт.

3

456353R1

COVER, flare notch

2шт.

4

456387R1

SUPPORT, front end box

1шт.

623086R1

BOLT, 1/2-13UNC x 1-1/2 c-z hex-hd mach

2шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13UNC c-z hex. lock

2шт.

5

456386R1

ADAPTER, hinge bracket

2шт.

456388R1

BOLT, 1/2-13UNC x 1/4 c-z hex-hd mach

4шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13UNC c-z hex. lock

4шт.

6

456384R91

ADAPTER PACKAGE, special, Parts necessary to mount grain box on no. 52 tractor trailer on no. 100 heavy duty tractor trailer equipped with rear hinged brackets for dumping

1шт.

7

456366R1

SPACER, rear bolster

1шт.

8

456351R1

BOLSTER, rear grain box

1шт.

9

456385R91

ADAPTER PACKAGE, special, Parts necessary to mount grain box on no. 52 tractor trailer, no. 6 farm truck or no. 100 heavy duty tractor w/solid bolsters and stake brackets

1шт.

10

456363R1

SPACER, rear crossmember

1шт.

11

456362R1

CROSSMEMBER, rear

1шт.

12

456357R1

BOARD, outer left tongued bottom

1шт.

18482R11

BOLT

W/NUT, 5/16-18UNC x 2 c-z crg

7шт.

18483R11

BOLT W/NUT, 5/16-18UNC x 2-1/4 c-z crg

2шт.

18484R11

BOLT W/NUT, 5/16-18UNC x 2-3/4 c-z crg

2шт.

18477R11

BOLT

W/NUT, 5/16-18UNC x 3-1/4 c-z crg

2шт.

18490R1

BOLT, 1/2-13UNC x 2-1/2 c-z crg

2шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13UNC c-z hex. lock

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

13

456358R1

BOARD, tongued and grooved bottom

5шт.

18483R11

BOLT W/NUT, 5/16-18UNC x 2-1/4 c-z crg

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

14

456359R1

BOARD, outer right grooved bottom

1шт.

18482R11

BOLT

W/NUT, 5/16-18UNC x 2 c-z crg

7шт.

18483R11

BOLT W/NUT, 5/16-18UNC x 2-1/4 c-z crg

2шт.

18477R11

BOLT

W/NUT, 5/16-18UNC x 3-1/2 c-z crg

2шт.

18484R11

BOLT W/NUT, 5/16-18UNC x 2-3/4 c-z crg

2шт.

18490R1

BOLT, 1/2-13UNC x 2-1/2 c-z crg

2шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13UNC c-z hex. lock

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

134238R1

WASHER

11/32 ID x 1 OD x 16 ga c-z

2шт.

15

456361R1

CROSSMEMBER, center tie

2шт.

106509

NAIL, 8-D x 2-1/2 barbed box coated

24шт.

16

456359R91

FLOOR ASSY, grain box

1шт.

456360R1

BOARD, front cross tie bottom

1шт.

106511

NAIL, 6-D x 3-1/2 sinker coated

14шт.

456354R1

SEAL, front panel

1шт.

18482R11

BOLT

W/NUT, 5/16-18UNC x 2 c-z crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
