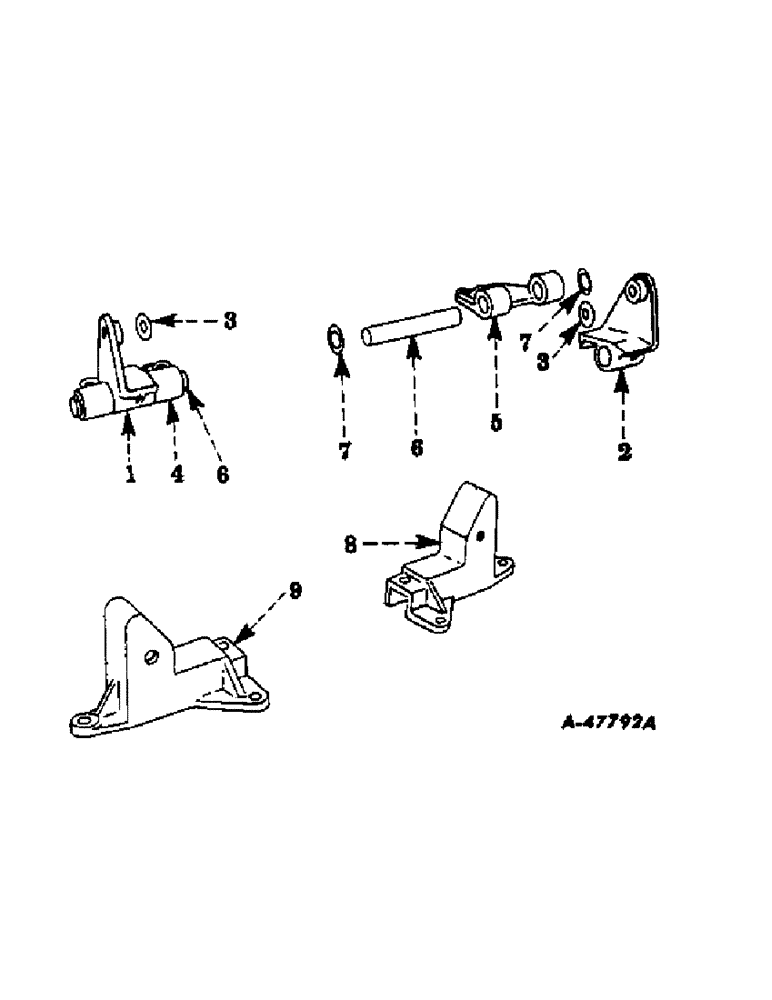

Запчасти Case IH VARIOUS (C-31) - BOX SUPPORTS AND HINGE BRACKETS, SPECIAL
№
Артикул
Название
Примечание
Количество
1
459350R1
BRACKET, right hinge box
1шт.
2
459349R1
BRACKET, left hinge box
1шт.
17507R1
BOLT, 3/4-10UNC x 1-3/4 dld hex-hd mach
2шт.
427636
SLOTTED NUT,3/4"-10, G5
NUT, 3/4-10UNC slotted hex.
2шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
2шт.
3
Q1484
WASHER
25/32 ID x 2-1/2 OD x 10 ga plain
2шт.
4
455229R2
BRACKET, right hinge axle
1шт.
5
455228R2
BRACKET, left hinge axle
1шт.
17473R1
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2
1/2-13UNC x 2-1/2 hex-hd mach
2шт.
17603R1
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2
1/2-13UNC x 2-3/4 hex-hd mach
4шт.
17721R1
BOLT, 1/2-13UNC x 4 hex-hd mach
2шт.
455388R1
NUT
1/2-13NC hex.lock
8шт.
6
453763R1
PIN, hinge
2шт.
32-1632
COTTER PIN,1/4" x 2"
PIN, SPLIT (COTTER), 1/4" x 2"
4шт.
7
Q121
WASHER
1-9/32 ID x 2 OD x 16 ga plain
4шт.
8
455221R1
SUPPORT, left front box
1шт.
9
455222R1
SUPPORT, right front box
1шт.
17448R1
BOLT (SPREADER)
BOLT, 1/2-13UNC x 1-1/4 hex-hd mach
2шт.
17473R1
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2
1/2-13UNC x 2-1/2 hex-hd mach
2шт.
17603R1
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2
1/2-13UNC x 2-3/4 hex-hd mach
2шт.
455388R1
NUT
1/2-13UNC hex. lock
6шт.
624341R11
SOCKET
SAFETY LAMP SOCKET UNIT, Consists of the following:, SPECIAL
1шт.
624341R1
SOCKET
safety lamp, UNIT, SPECIAL
1шт.
14994R11
BOLT,5/16" - 18 x 3/4"
W.NUT, 5/16-18UNC x 3/4 crg, SAFETY LAMP SOCKET UNIT, SPECIAL
2шт.
Q397
WASHER
11/32 ID x 3/4 x 16 ga plain, SAFETY LAMP SOCKET UNIT, SPECIAL
2шт.
624342R91
TAPE PACKAGE, reflective, Consists of two 2 x 8 in. strips of scotchlight tape or equivalent
1шт.
456678R91
TIE ASSY, bolster stake box, special , SEE NOTE
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , Bolster stake box tie, See note 1/2"-13, G5
4шт.
429109
SCREW, BOLSTER STAKE BOX TIE, SEE NOTE
4шт.
455566R1
TIE, BOLSTER STAKE BOX, SEE NOTE
2шт.
120384
WASHER,1/2"
LOCK, , Bolster stake box tie, see note 1/2"
4шт.
Выбрано товаров: 32
