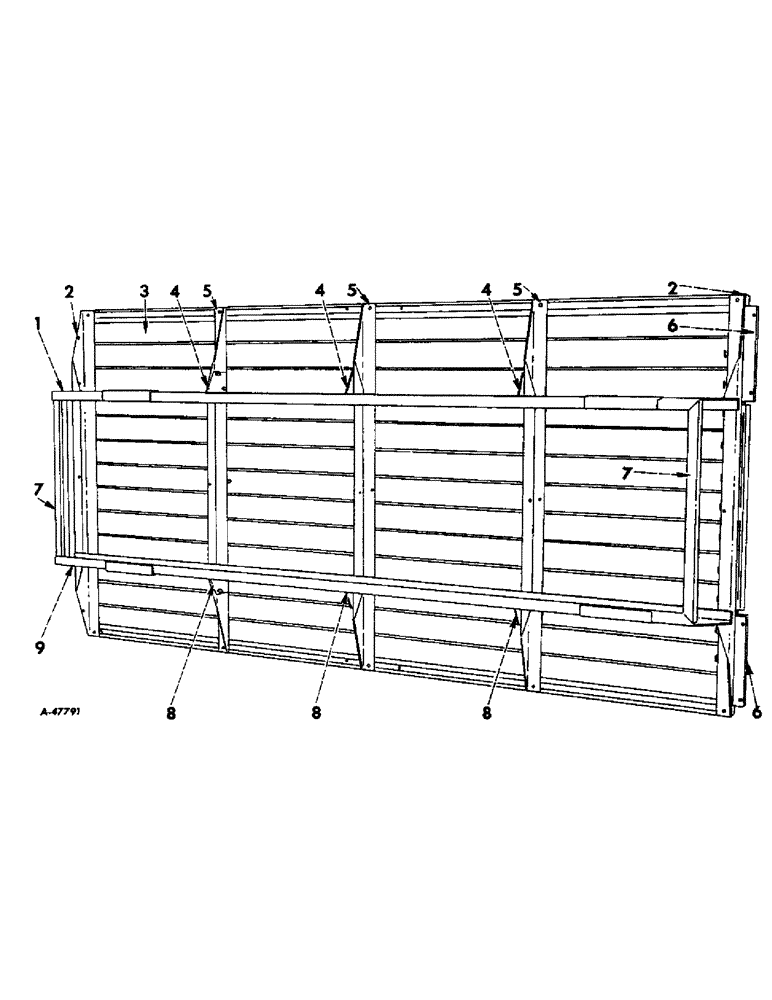

Запчасти Case IH VARIOUS (C-30) - PLATFORM

459291R91

PLATFORM AND SILL, 1957 to 1959, Consists of all unmarked parts and those marked no. 15

1шт.

459351R91

PLATFORM AND SILL, 1957 to 1959, Consists of all unmarked parts and those marked no. 16

1шт.

1

459299R11

SILL W/BRACES AND REINFORCEMENTS, left longitudinal, no. 15

1шт.

1

459352R11

SILL W/BRACES AND REINFORCEMENTS, left longitudinal, no. 16

1шт.

2

459302R1

CROSS SILL, front and rear axle

2шт.

3

459296R1

FLOORING, steel, 13 used no. 15

1шт.

3

459355R1

FLOORING, steel, 13 used no. 16

1шт.

4

459344R1

BRACE, left cross sill, 2 used no. 15, 3 used no. 16

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8-16UNC x 3/4 hex-hd mach, 4 used no. 15, 6 used no. 16

1шт.

456197R1

NUT, 3/8-16UNC hex. lock, 4 used no. 15, 6 used no. 16

1шт.

5

459303R11

CROSS SILL W/INTERMEDIATE SPACER, 2 used no. 15, 3 used no. 16

1шт.

6

459297R1

LATCH, endgate

2шт.

7

459305R1

SPACER, longitudinal sill

2шт.

8

459345R1

BRACE, right cross sill, 2 used no. 15, 3 used no. 16

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8-16UNC x 3/4 hex-hd mach, 4 used no. 15, 6 used no. 16

1шт.

456197R1

NUT, 3/8-16UNC hex. lock, 4 used no, 15, 6 used no. 16

1шт.

9

459300R11

SILL W/BRACES AND REINFORCEMENTS, right longitudinal, no. 15

1шт.

9

459353R11

SILL W/BRACES AND REINFORCEMENTS, right longitudinal, no. 16

1шт.
