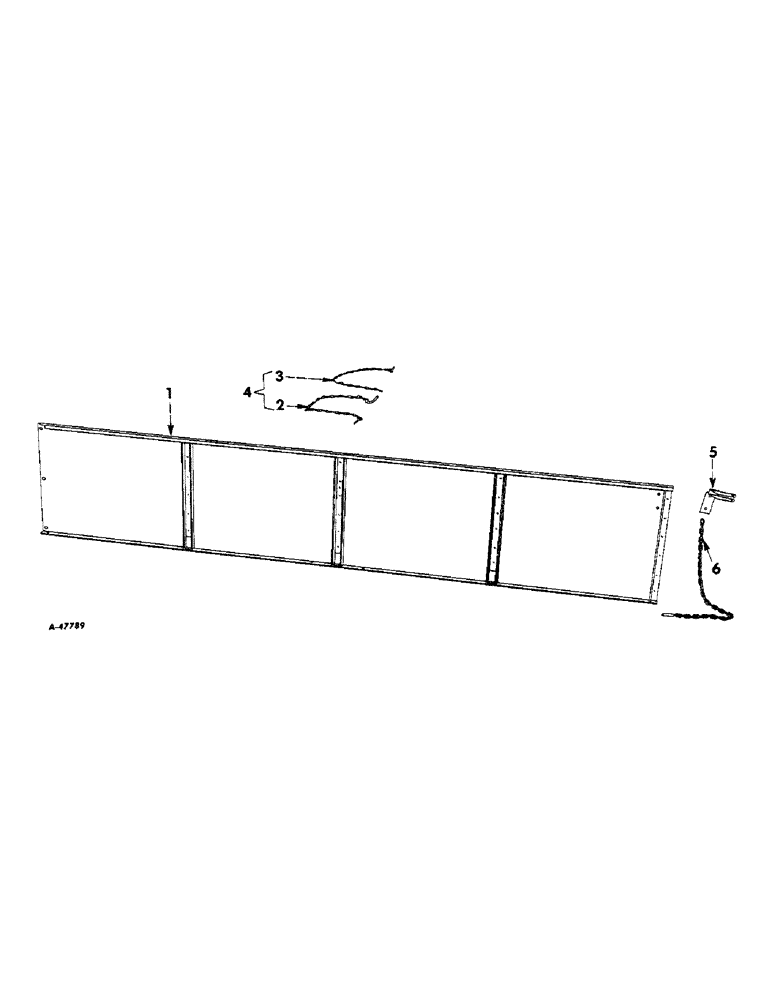

Запчасти Case IH VARIOUS (C-28) - SIDES

1

459306R11

SIDE, left, no. 15

1шт.

1

459307R11

SIDE, right, no. 15

1шт.

18812R11

BOLT W/NUT, 1/2-13UNC x 3 c-z hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

Q5035

WASHER

17/32 ID x 1 OD no. 16 ga plain

8шт.

1

459356R11

SIDE, left, no. 16

1шт.

1

459357R11

SIDE, right, no. 16

1шт.

18812R11

BOLT W/NUT, 1/2-13UNC x 3 c-z hex-hd mach

10шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

Q5035

WASHER

17/32 ID x 1 OD x 16 ga plain

10шт.

2

459338R92

CHAIN W/EYEBOLT AND LATCH HOOK ASSY, stay

1шт.

120376

NUT,5/16"-18, G5

2шт.

3

459337R92

CHAIN W/EYEBOLT ASSY, stay

1шт.

120376

NUT,5/16"-18, G5

2шт.

4

459336R92

CHAIN ASSY, anti spreader

1шт.

5

459340R11

LATCH, left tailgate

1шт.

5

459341R91

LATCH, right tailgate

1шт.

18495R11

BOLT

W/.NUT, 3/8-16UNC x 1-1/4 c-z hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Q1505

WASHER

13/32 ID x 1 OD x 16 ga plain

8шт.

6

459333R11

CHAIN, tailgate

2шт.

18495R11

BOLT

W/NUT, 3/8-16UNC x 1-1/4 c-z hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Q1505

WASHER

13/32 ID x 1 OD x 16 ga plain

4шт.
