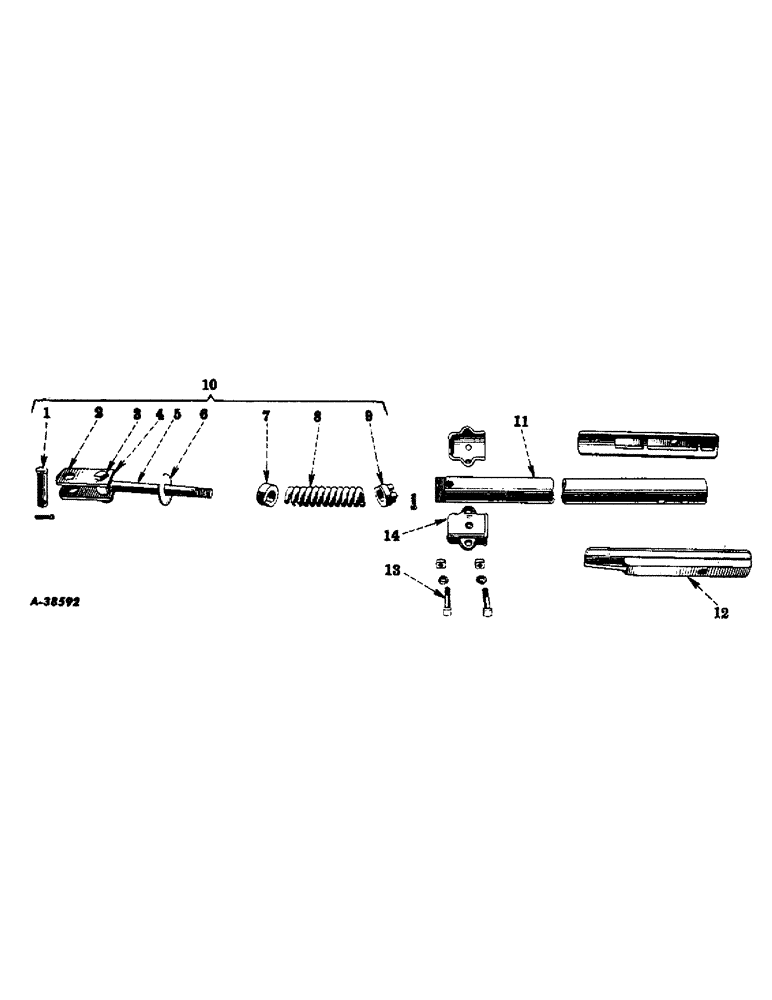

Запчасти Case IH VARIOUS (A-25) - STUB TONGUE TRACTOR HITCH, SPECIAL

ZMA422

STUB TONGUE TRACTOR HITCH, special, Consists of

1шт.

1

Q1238

HEADED PIN,3/4" x 3 1/2"

PIN, 3/4 x 2-1/2 dld std-hd

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

2

16134WA

PLATE, clevis

2шт.

Q3459

BOLT, 7/8-9NC x 3-1/2 dld sq-hd mach

1шт.

114822

DISC

NUT, 7/8-9NC hex

1шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

3

17611R1

BOLT, 5/8-11NC x 2-3/4 hex-hd mach

1шт.

427630

PLUG

NUT, 5/8-11NC hex slotted

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

4

16612W

BUSHING, coupling rod

1шт.

5

16611WA

ROD, coupling

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

6

16731WA

WASHER, coupling rod

1шт.

7

675W

GUIDE, coupling clevis rod

1шт.

8

E766F

SPRING, tongue hitch

1шт.

9

693W

NUT, coupling rod

1шт.

10

16880W

ROD ASSEMBLY, coupling

1шт.

11

16703W

TONGUE, stub

1шт.

12

455233R1

ADAPTER, stub tongue

2шт.

13

17549R11

BOLT

W/NUT, 7/16-14NC x 2-1/4 hex-hd mach

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

14

692W

CAP, coupling rod

2шт.
