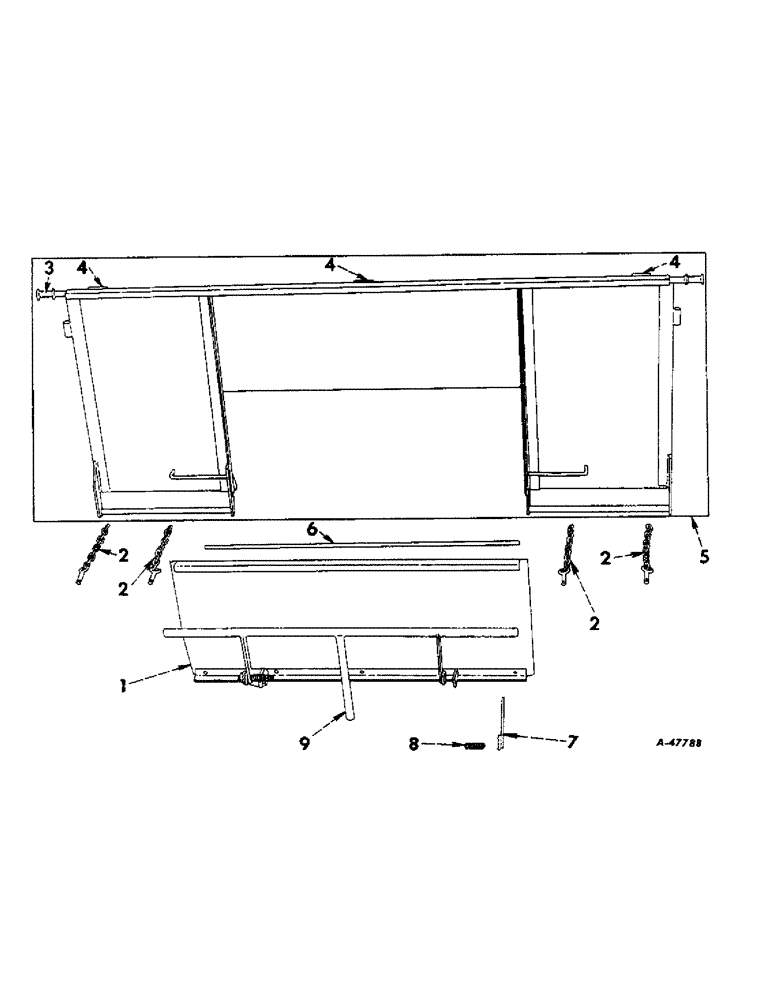

Запчасти Case IH VARIOUS (C-27) - TAILGATE

1

459325R11

DOOR, grain

1шт.

2

459335R11

CHAIN, latch tailgate

4шт.

18495R11

BOLT

W/NUT, 3/8-16UNC x 1-1/4 c-z hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Q1505

WASHER

13/32 ID x 1 OD x 16 ga plain

4шт.

3

459332R11

ROD, hinge

1шт.

4

459308R1

POCKET, stake, 11 used no. 15, 9 used no. 16

1шт.

5

459313R11

TAILGATE

1шт.

6

459348R1

ROD, grain door hinge

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

7

459339R11

ARM, ratchet

2шт.

18786R11

BOLT

W/NUT, 3/8-16UNC x 3-1/2 c-z hex-hd mach

2шт.

18779R11

BOLT

W/NUT, 3/8-16UNC x 1-1/2 c-z hex-hd mach

2шт.

456197R1

NUT, 3/8-16NC hex. lock

4шт.

8

2700T

SPRING, compression

2шт.

9

459328R11

HINGE, grain door

1шт.
