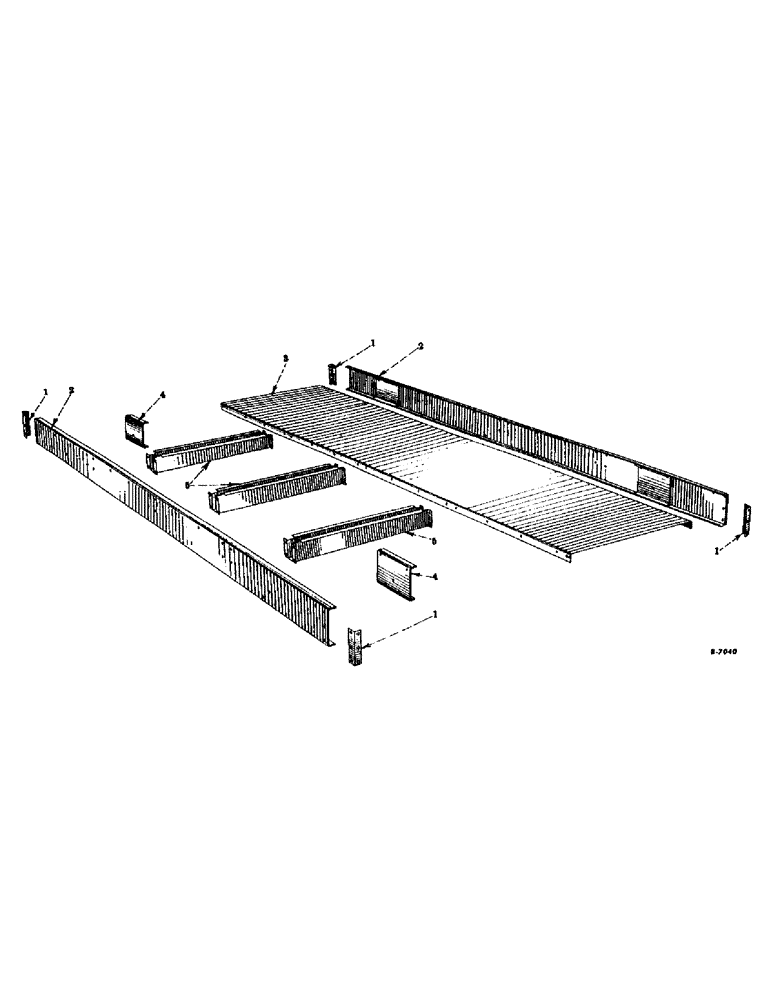

Запчасти Case IH VARIOUS (C-21) - MAIN SILL AND CENTER FLOOR PLATE, PLATFORM AND BOX TYPE, 1952 & SINCE

1

455268R1

BRACKET, end cross sill

4шт.

17433R11

BOLT W/NUT, 1/2-13NC x 1 cd-pltd hex-hd mach

8шт.

16871R1

BOLT, 1/2-13NC x 1-1/8 mach, rear

4шт.

17452R11

BOLT W/NUT, 1/2-13NC x 1-1/4 cd-pltd hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

2

455286R1

SILL, main

2шт.

17442R11

BOLT W/NUT, 1/2-13NC x 1-1/8 cd-pltd hex-hd mach

16шт.

129384

RIGID TUBE

WASHER, 1/2 cd-pltd lock

16шт.

3

455284R1

PLATE, center floor

1шт.

4

455263R1

REINFORCEMENT, main sill

4шт.

17433R11

BOLT W/NUT, 1/2-13NC x 1 cd-pltd hex-hd mach

6шт.

17452R11

BOLT W/NUT, 1/2-13NC x 1-1/4 cd-pltd hex-hd mach

4шт.

17465R11

BOLT W/NUT, 1/2-13NC x 1-3/8 cd-pltd hex-hd mach, rear

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

5

455266R1

SUPPORT, center floor plate

3шт.

17452R11

BOLT W/NUT, 1/2-13NC x 1-1/4 cd-pltd hex-hd mach

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.
