Запчасти Case IH VARIOUS (C-17) - FOUR-WAY ENDGATE, BOX TYPE, 1954 AND SINCE

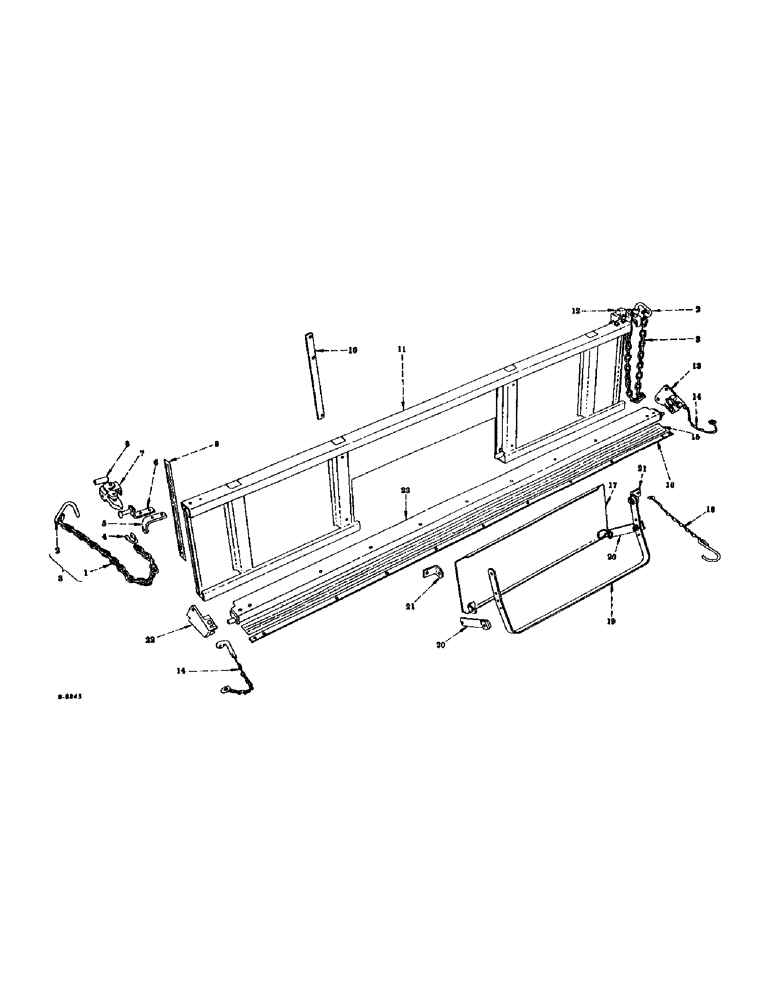

Схема запчастей Case IH VARIOUS - (C-17) - FOUR-WAY ENDGATE, BOX TYPE, 1954 AND SINCE

Артикул

Название

Примечание

Количество

1

456046R2

CHAIN, upper endgate latch hose, 18 links

2шт.

2

446047R1

HOOK, upper endgate latch

2шт.

3

456040R92

CHAIN W/HOOK ASSY, upper endgate latch

2шт.

4

456272R1

SHACKLE, upper endgate chain

2шт.

16771R1

PIN, 1/8 x 3/4 cotter, parkerized

2шт.

456273R1

PIN, 3/8 x 1-3/8 dld std-hd

2шт.

5

456029R1

SUPPORT, endgate chain tie

2шт.

18495R11

BOLT

W/NUT, 3/8-16NC x 1-1/4 cd-pltd hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

456027R91

ROD, upper endgate pivot

2шт.

7

456025R1

YOKE, upper left endgate pivot

1шт.

18498R11

BOLT W/NUT, 1/2-13NC x 3-1/2 cd-pltd hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

456032R1

SPACER, upper endgate pivot yoke

2шт.

9

456041R1

SEAL, side endgate

2шт.

10

456038R1

GUIDE, grain gate

2шт.

11

456035R91

ENDGATE, less grain gate

1шт.

18494R11

SCREW

BOLT W/NUT, 3/8-16NC x 1 cd-pltd hex-hd mach

12шт.

18495R11

BOLT

W/NUT, 3/8-16NC x 1-1/4 cd-pltd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

12

456026R1

YOKE, upper right endgate pivot

1шт.

18498R11

BOLT W/NUT, 1/2-13NC x 3-1/2 cd-pltd hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

13

456031R1

YOKE, lower right endgate pivot

1шт.

18497R11

BOLT W/NUT, 1/2-13NC x 1-3/4 cd-pltd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

14

456028R91

PIN W/CHAIN, lower endgate latch

2шт.

15

456115R1

SEAL, bottom endgate

1шт.

16

456116R1

STRAP, bottom endgate seal support

1шт.

17

456036R91

GATE, grain

1шт.

18

456340R91

HOOK W/CHAIN, grain gate locking

1шт.

16791R1

COTTER PIN

PIN, 3/16 x 1 cot., parkerized

4шт.

19

456039R1

BAIL, grain gate lifting

1шт.

20

456037R91

ARM, grain gate lifting

2шт.

16791R1

COTTER PIN

PIN, 3/16 x 1 cot., parkerized

2шт.

456241R1

PIN, 7/16 x 7/8 dld std-hd

2шт.

456034R1

PIN, 7/16 x 1-3/16 dld std-hd

2шт.

21

456033R1

BRACKET, upper grain gate lifting

2шт.

456241R1

PIN, 7/16 x 7/8 dld std-hd

2шт.

22

456030R1

YOKE, lower left endgate pivot

1шт.

18497R11

BOLT W/NUT, 1/2-13NC x 1-3/4 cd-pltd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

23

456019R91

STIFFENER, gap closure and endgate

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18NC x 3/4 cd-pltd crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

455461R92

FIELD CONVERSION PACKAGE, Parts required to convert trailer platform into a trailer box equipped with four-way endgate, Consists of ref. nos. 1 thru 4 of box side and removeable center section endgate unit and ref. nos. 1 thru 23 of four-way endgate unit

1шт.

456016R91

FILED CONVERSION PACKAGE, Parts required to convert trailer box with removeable center section endgate to trailer box with four-way endgate, Refer to four-way endgate unit

1шт.

Выбрано товаров: 48
