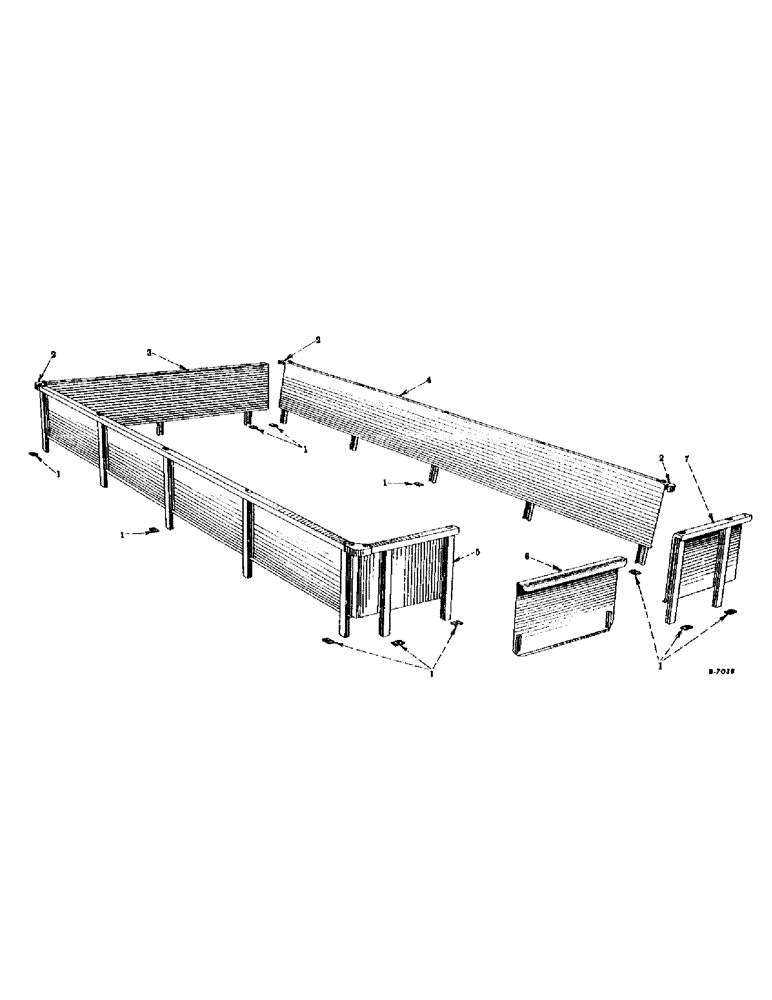

Запчасти Case IH VARIOUS (C-15) - BOX SIDE AND REMOVEABLE CENTER SECTION ENDGATE

1

455281R1

PLATE, stake lock, 12 used 1952 to 1953, 8 used 1954 and since

1шт.

2

455282R1

BRACKET, box corner, 4 used 1952 and 1953, 2 used 1954 and since

1шт.

3

455290R11

END, front box, 1952 and since

1шт.

17423R11

BOLT W/NUT, 1/2-13NC x 7/8 cd-pltd hex-hd mach

2шт.

16873R1

BOLT,Short NK, 7/16"-14 x 2 1/4", G2

7/16-14NC x 2-1/4 cd-pltd crg

2шт.

452649R1

NUT, speed, spring type

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14NC cd-pltd hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

455287R21

SIDE, box, 1952 and since

2шт.

16873R1

BOLT,Short NK, 7/16"-14 x 2 1/4", G2

7/16-14NC x 2-1/4 cd-pltd crg

6шт.

17423R11

BOLT W/NUT, 1/2-13NC x 7/8 cd-pltd hex-hd mach

4шт.

18496R11

BOLT W.NUT, 1/2-13NC x 1-1/2 cd-pltd hex-hd mach

2шт.

452649R1

NUT, speed, spring type

6шт.

271501

SOCKET

NUT, 7/16-14NC cd-pltd hex.

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

5

455291R11

END, left rear box, 1952 and 1954

1шт.

16873R1

BOLT,Short NK, 7/16"-14 x 2 1/4", G2

7/16-14NC x 2-1/4 crg

2шт.

16869R1

BOLT, 1/2-13NC x 7/8 mach

1шт.

452649R1

NUT, speed, spring type

2шт.

125529

HITCH

NUT, 7/16-14NC square

2шт.

125536

SQUARE NUT

1/2-13NC square

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

455293R11

GATE, box end, Serial Range: 1952-1954

1шт.

7

455292R11

END, right rear box, Serial Range: 1952-1954

1шт.

16873R1

BOLT,Short NK, 7/16"-14 x 2 1/4", G2

7/16-14NC x 2-1/4 crg

2шт.

16869R1

BOLT, 1/2-13NC x 7/8 mach

1шт.

452649R1

NUT, speed, spring type

2шт.

125529

HITCH

NUT, 7/16-14NC square

2шт.

125536

SQUARE NUT

1/2-13NC square

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
