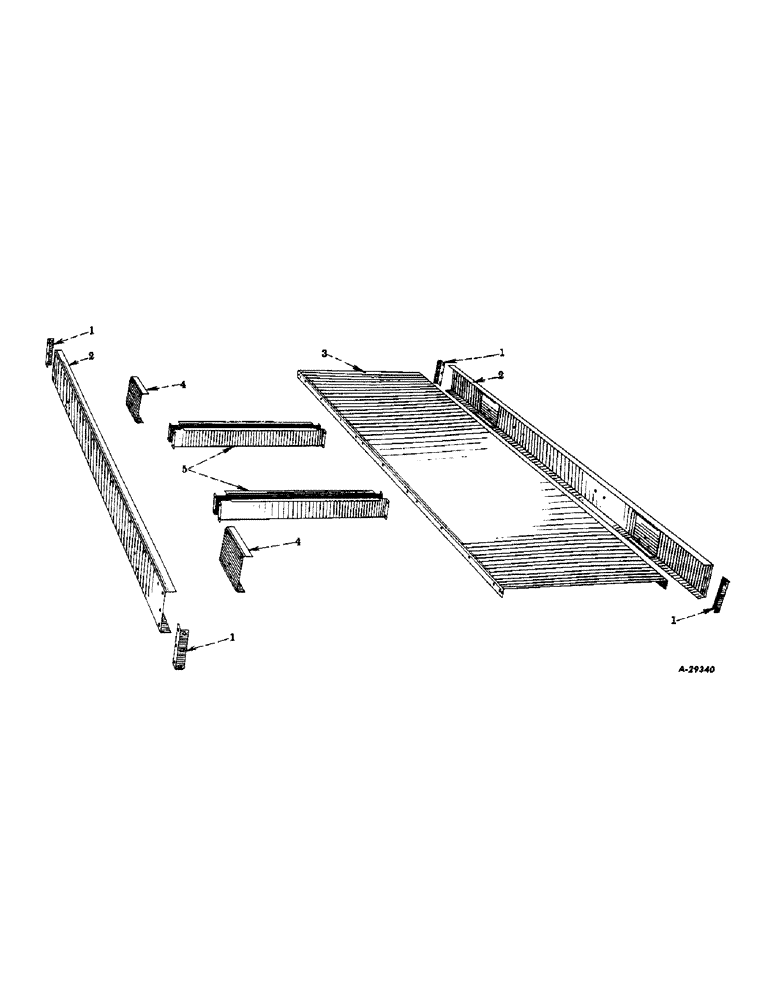

Запчасти Case IH VARIOUS (C-12) - MAIN SILL AND CENTER FLOOR PLATE, 1952 AND SINCE

1

455268R1

BRACKET, end cross sill

4шт.

17433R11

BOLT W/NUT, 1/2-13NC x 1 cd-pltd hex-hd mach

8шт.

17452R11

BOLT W/NUT, 1/2-13NC x 1-1/4 cd-pltd hex-hd mach

4шт.

17442R11

BOLT W/NUT, 1/2-13NC x 1-1/8 cd-pltd hex-hd mach, rear

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

2

455262R1

SILL, main

2шт.

17442R11

BOLT W/NUT, 1/2-13NC x 1-1/8 cd-pltd hex-hd mach

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

3

455260R1

PLATE, center floor

1шт.

4

455263R1

REINFORCEMENT, main sill

4шт.

17433R11

BOLT W/NUT, 1/2-13NC x 1 cd-pltd hex-hd mach, front

6шт.

17452R11

BOLT W/NUT, 1/2-13NC x 1-1/4 cd-pltd hex-hd mach

4шт.

17465R11

BOLT W/NUT, 1/2-13NC x 1-3/8 cd-pltd hex-hd mach, rear

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

5

455266R1

SUPPORT, center floor plate

2шт.

17452R11

BOLT W/NUT, 1/2-13NC x 1-1/4 cd-pltd hex-hd mach

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

624936R91

SOCKET UNIT, safety lamp, Consists of the following: , SPECIAL 1957

1шт.

624935R1

BRACKET, safety lamp mounting, SOCKET UNIT, SPECIAL 1957

1шт.

624341R1

SOCKET

safety lamp, UNIT, SPECIAL 1957

1шт.

14994R11

BOLT,5/16" - 18 x 3/4"

W/NUT, 5/16-18NC x 3/4 crg, SAFETY LAMP SOCKET UNIT, SPECIAL 1957

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Safety lamp locket unit, Special 1957 5/16"

2шт.

624342R91

TAPE PACKAGE, reflective, Consists of two 2 x 8 in. strips of scotchlight tape or equivalent , SAFETY LAMP SOCKET UNIT, SPECIAL 1957

1шт.

547495R92

DECAL KIT

PACKAGE, International name product graphics, Replaces 1001307R1, On box side

1шт.
