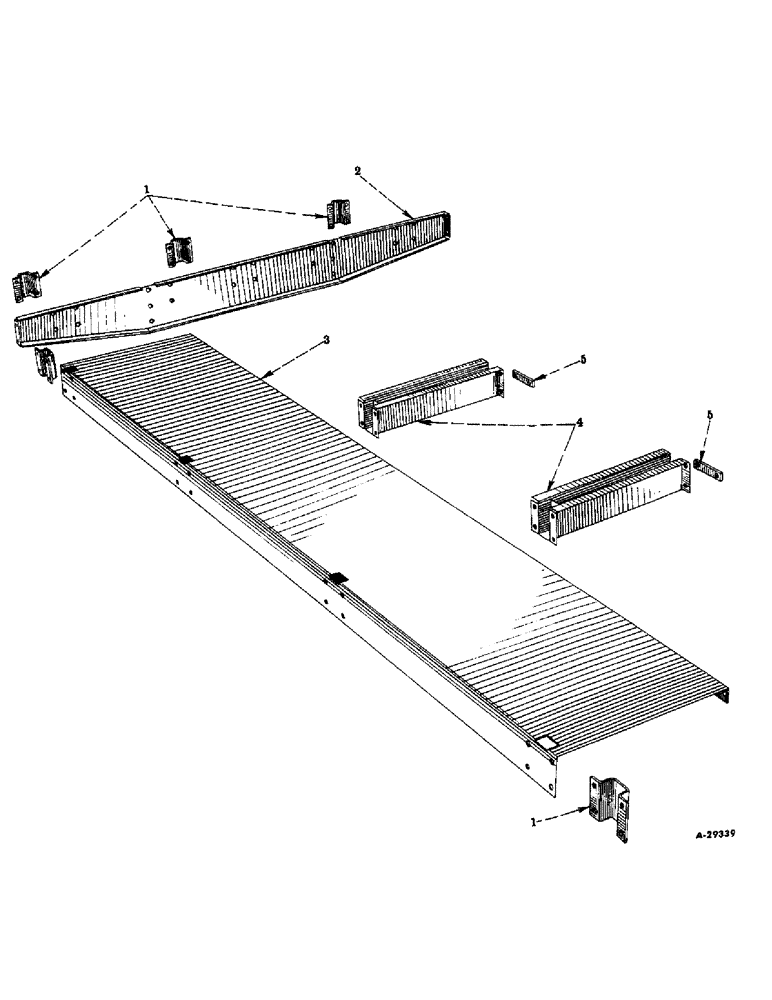

Запчасти Case IH VARIOUS (C-10) - FRONT CROSS SILL AND LEFT SIDE FLOOR PLATE, 1952 AND SINCE

1

455270R2

BRACKET, stake

5шт.

2

455269R1

SILL, end cross

1шт.

17433R11

BOLT W/NUT, 1/2-13NC x 1 cd-pltd hex-hd mach

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

3

455261R1

PLATE, side floor

1шт.

17423R11

BOLT W/NUT, 1/2-13NC x 7/8 cd-pltd hex-hd mach

8шт.

17433R11

BOLT W/NUT, 1/2-13NC x 1 cd-pltd hex-hd mach

4шт.

17442R11

BOLT W/NUT, 1/2-13NC x 1-1/8 cd-pltd hex-hd mach

2шт.

18497R11

BOLT, 1/2-13NC x 1-3/4 cd-pltd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

4

455264R11

SUPPORT, side floor plate

2шт.

5

455267R1

FILLER, side floor plate support

2шт.

456678R91

TIE ASSY, bolster stake box, special, 1952 and since

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

429109

SCREW

4шт.

455566R1

TIE

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.
