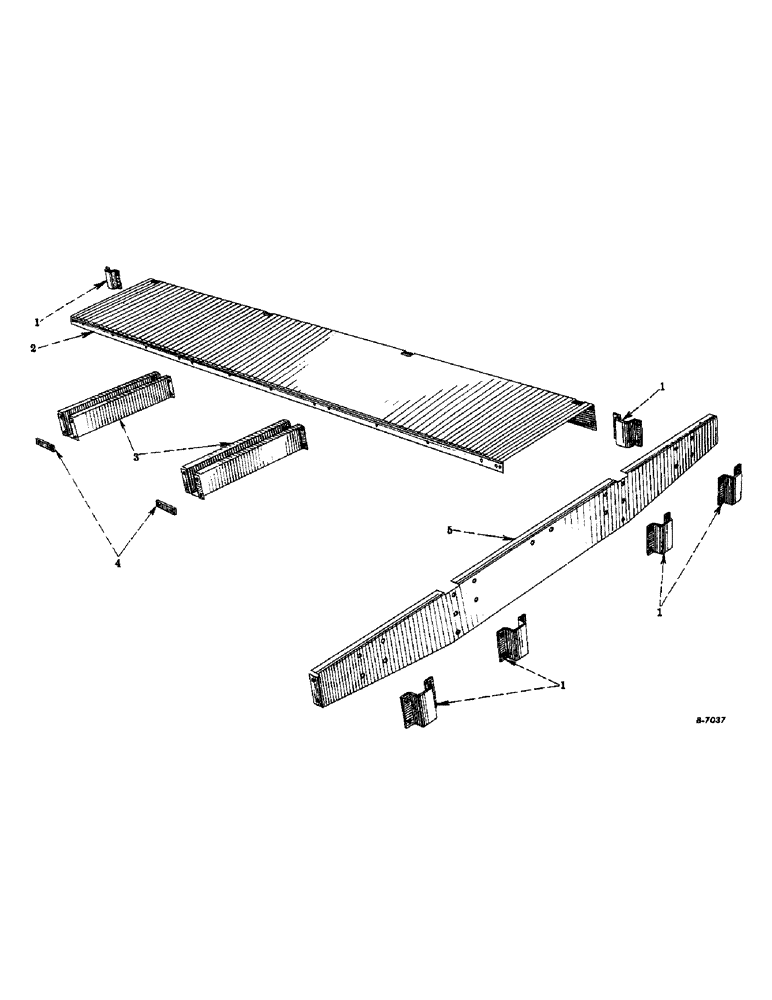

Запчасти Case IH VARIOUS (C-09) - REAR CROSS SILL AND RIGHT SIDE FLOOR PLATE, 1952 AND SINCE

1

455270R2

BRACKET, stake, 6 used with platform 1952 and since, 6 used with box type 1952 and 1953, 2 used with box type 1954 and since

1шт.

2

455261R1

PLATE, side floor

1шт.

17423R11

BOLT W/NUT, 1/2-13NC x 7/8 cd-pltd hex-hd mach

8шт.

17433R11

BOLT W/NUT, 1/2-13NC x 1 cd-pltd hex-hd mach

4шт.

17442R11

BOLT W/NUT, 1/2-13NC x 1-1/8 cd-pltd hex-hd mach

2шт.

18497R11

BOLT W/NUT, 1/2-13NC x 1-3/4 cd-pltd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

3

455264R11

SUPPORT, side floor plate

2шт.

4

455267R1

FILLER, side floor plate support

2шт.

5

455269R1

SILL, end cross

1шт.

17433R11

BOLT W/NUT, 1/2-13NC x 1 cd-pltd hex-hd mach

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.
