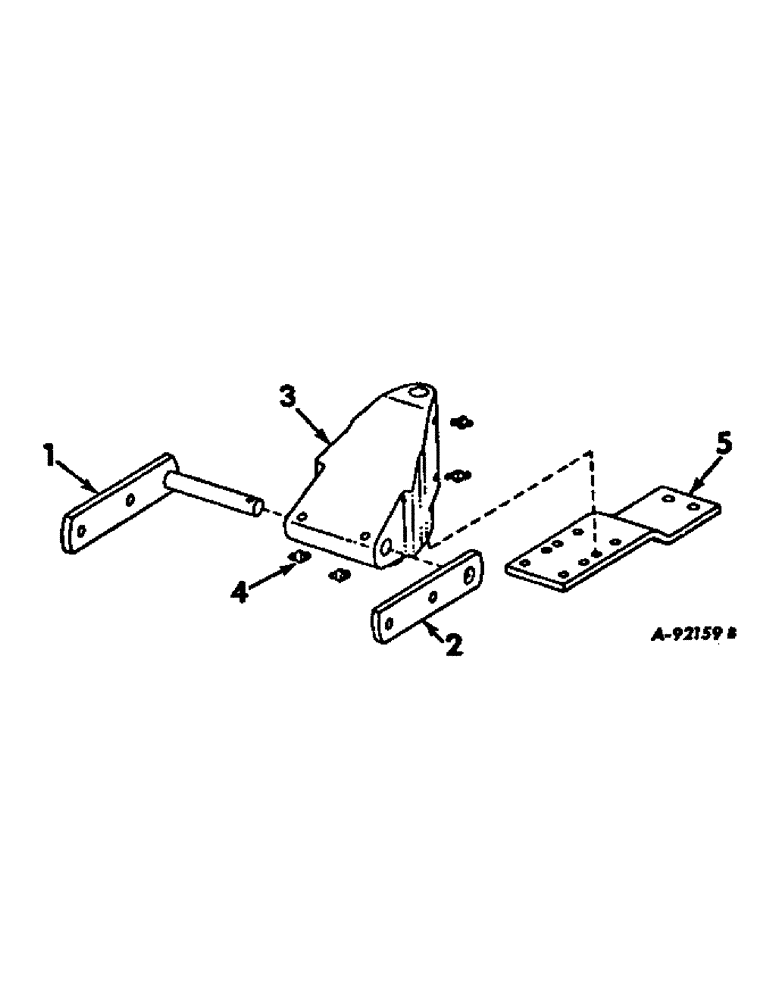

Запчасти Case IH VARIOUS (B-188) - STEERING BRACKET

1

491642R1

PIN ASSY, hitch

1шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

SCREW, 5/8-11 x 7-1/2 znd hex-hd cap

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 c-z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

400519R1

SUPPORT, hitch pin strap

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga c-z

1шт.

3

491645R1

HOUSING, draft bracket

1шт.

4

16982R91

FITTING

1/4-28 str lub

4шт.

5

491646R2

BRACKET, steering

1шт.

540467R1

BOLT, 5/8-11 x 3 sq-hd mach

2шт.

350523R1

BOLT (SPREADER),5/8" - 11 x 2 1/4"

BOLT, 5/8-11 x 2-1/4 sq-hd mach

2шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 nylon insert

4шт.
