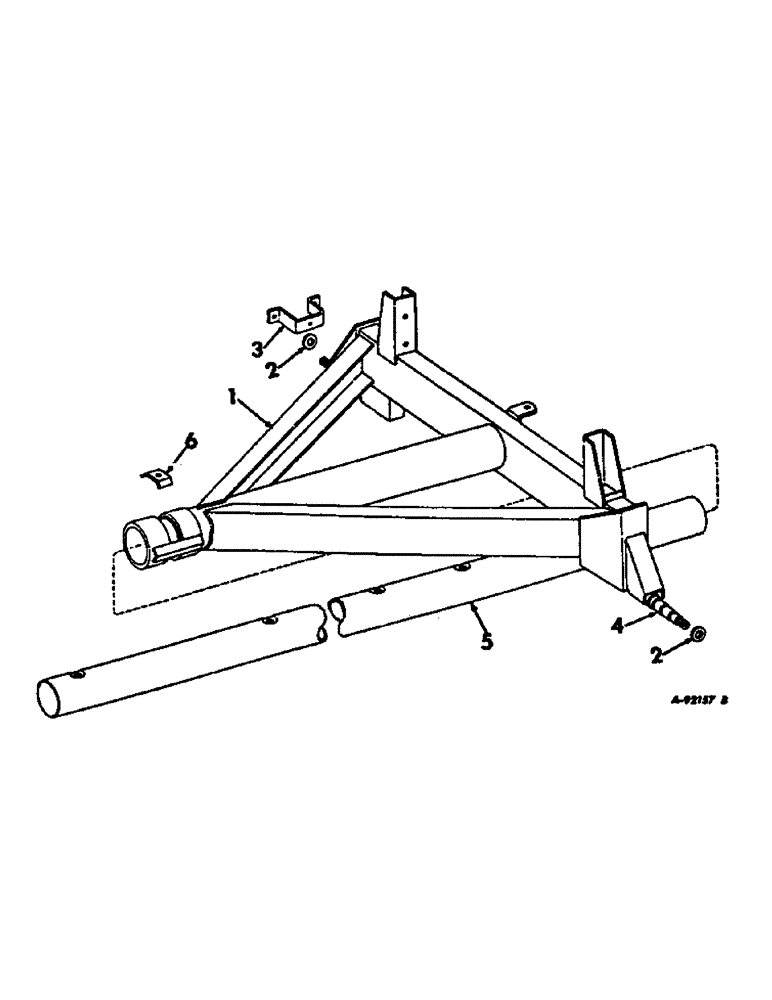

Запчасти Case IH VARIOUS (B-186) - REAR AXLE AND REACH POLE

1

491695R1

AXLE ASSY, rear

1шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 c-z slt hex

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

2

619373R1

WASHER

spindle 29/32 x 2 x 7 ga

2шт.

3

491709R1

SUPPORT, bolster stake bracket

2шт.

4

491702R11

SPINDLE ASSY

2шт.

5

491711R1

POLE ASSY, reach

1шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 znd hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 c-z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

491710R1

SUPPORT, reach pole clip

2шт.
