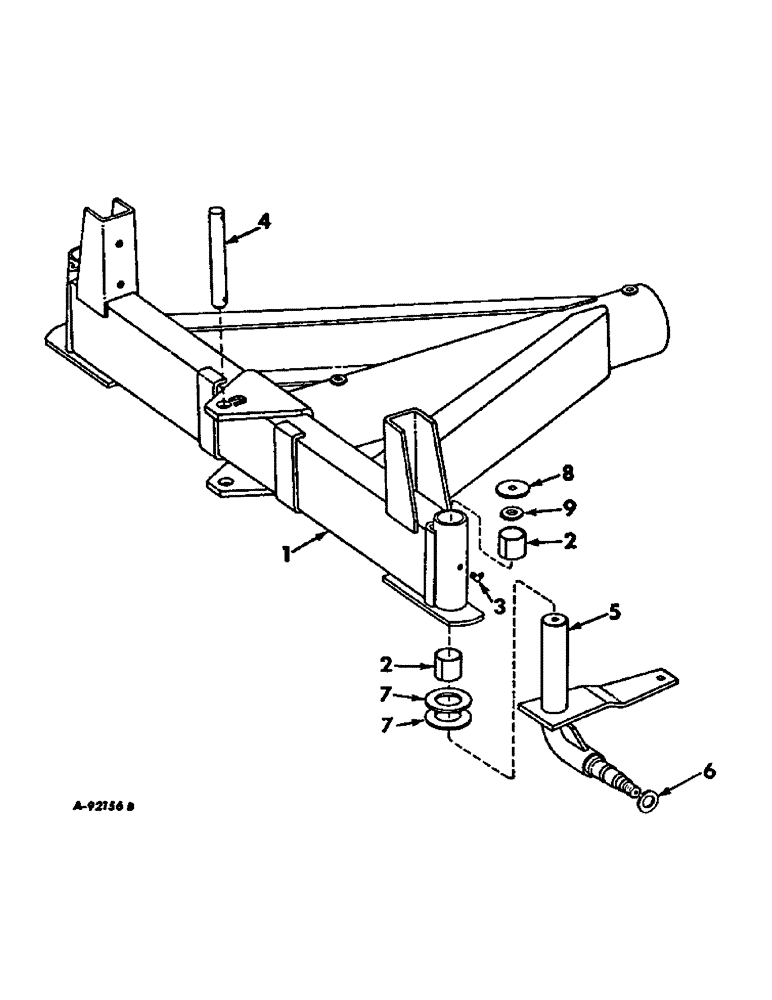

Запчасти Case IH VARIOUS (B-185) - FRONT AXLE

1

491648R91

AXLE ASSY, front

1шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 znd hex-hd cap

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 c-z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

491657R1

BUSHING

4шт.

3

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF 90 deg lub

2шт.

4

491688R1

PIN, king

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

21716R1

WASHER

1-5/32 x 1-3/4 x 16 ga c-z, or as required

1шт.

5

491689R1

SPINDLE ASSY, LH

1шт.

5

491690R1

SPINDLE ASSY, RH

1шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 c-z slt hex

2шт.

6

619373R1

WASHER

spindle 29/32 x 2 x 7 ga

2шт.

7

491694R1

WASHER, spindle thrust

4шт.

8

148927R1

WASHER, spindle cap

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

22273R1

WASHER

shim 17/32 x 2 x 22 ga c-z, or as required

1шт.
