Запчасти Case IH VARIOUS (B-179) - VACUUM HYD. BRAKES, 1966 AND SINCE, OPTIONAL EQUIP., PWR. UNIT, RELAY VALVE, VACUUM TANK

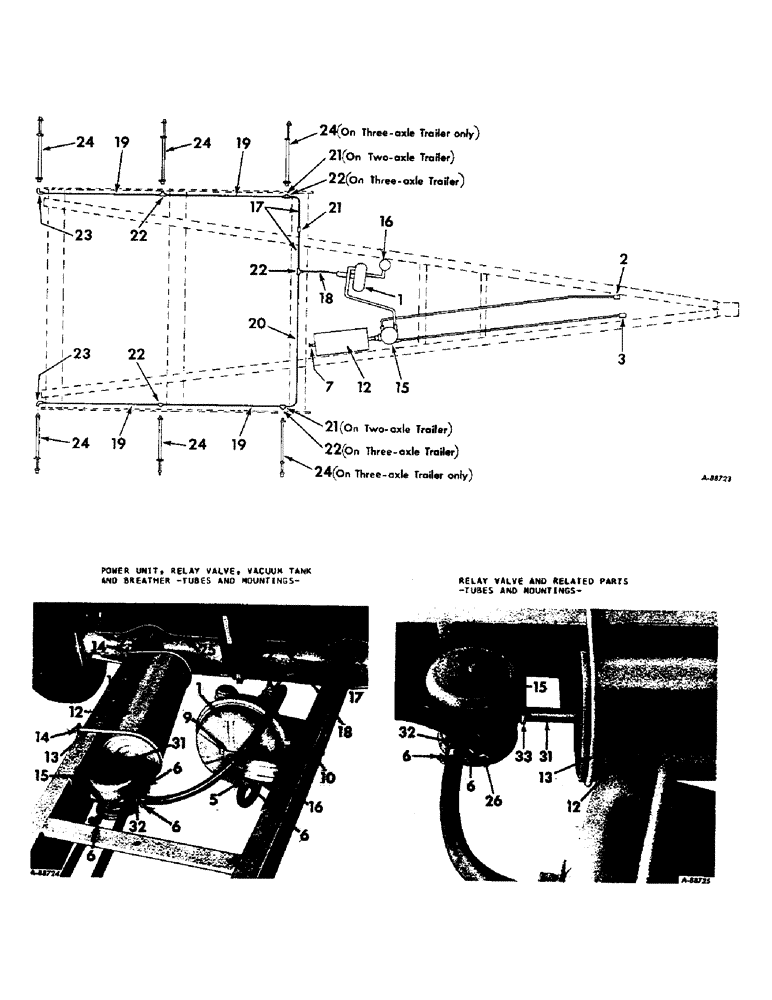

Схема запчастей Case IH VARIOUS - (B-179) - VACUUM HYD. BRAKES, 1966 AND SINCE, OPTIONAL EQUIP., PWR. UNIT, RELAY VALVE, VACUUM TANK

Артикул

Название

Примечание

Количество

1

951901R91

POWER UNIT

1шт.

BOLT, 7/16 x 1 mach

2шт.

NUT, 7/16

2шт.

NUT, 1/2

1шт.

WASHER, 1/2 lock

1шт.

2

951902R1

COUPLING, hose

1шт.

3

951903R1

COUPLING W/RESTRICTOR, hose

1шт.

4

951904R1

PLUG, coupling

2шт.

5

30846H

NIPPLE, 3/8 in. pipe to 1/2 in. hose

2шт.

6

240369R91

CLAMP, hose

8шт.

7

103647

VALVE

COCK, drain

1шт.

8

698567R1

BOLT, terminal

2шт.

9

964600R1

BRACKET, front mounting

1шт.

10

964601R1

BRACKET, rear mounting

1шт.

BOLT, 3/8 x 3 mach

4шт.

NUT, 3/8

4шт.

WASHER, 3/8 lock

4шт.

11

964602R1

BRACKET, hose support

1шт.

BOLT, 5/16 x 1 mach

4шт.

NUT, 5/16

4шт.

WASHER, 5/16 lock

4шт.

12

74285HB

TANK, vacuum

1шт.

13

964598R1

U-BOLT, vacuum tank mounting

2шт.

NUT, 3/8

4шт.

WASHER, 3/8 lock

4шт.

14

964599R1

STRAP, vacuum tank

2шт.

15

951905R1

VALVE, relay

1шт.

16

951906R1

BREATHER

1шт.

17

964615R1

TUBE, hydraulic, 12 in.

2шт.

18

964616R1

TUBE, hydraulic, 20 in.

1шт.

19

964617R1

TUBE, hydraulic, 30 in.

4шт.

20

964618R1

TUBE, hydraulic, 40 in.

1шт.

21

NLS

NO LONGER SERVICED

UNION, 7/16-24 straight thd, tube fitting, 3 on two axle, 1 on three axle (PN 137413)

1шт.

22

127927

TEE,7/16"-24, Inv Flare, Fem, Brass

female, 7/16-24 straight thd, tube fitting, 3 on tow axel, 5 on three axle

1шт.

23

567118R1

ELBOW, union, 7/16-24 straight thd, tube fitting

2шт.

24

964191R1

HOSE, flex, hyd, brake hose, 4 on two axle, 6 on three axle

1шт.

25

140579

CLAMP, closed

13шт.

141508

SPARE PART

SCREW, no. 6, 3/8 self tapping, Type B

13шт.

WASHER, 1/4 x 9/16 x 18 ga

13шт.

26

30844H

ELBOW, 90 deg, 1/2 in. pipe to 1/2 in. hose

1шт.

28

ELBOW, 1/4 x 90 deg street pipe

1шт.

29

30846H

NIPPLE, 3/8 in. pipe to 1/2 in. hose, 2 more in kit

2шт.

30

ELBOW, 3/8 x 90 deg street pipe

1шт.

31

NIPPLE, 1/2 in. x 1-1/2 pipe

1шт.

32

68406H

NIPPLE, 1/2 in. pipe to 1/2 in. hose

1шт.

33

REDUCER, bushing type 3/4 to 1/2 pipe

1шт.

34

REDUCER, bushing type 1/2 to 1/4 pipe

1шт.

951964R1

HOSE, vacuum, 1/2 in. x 7 ft., This length of hose and the 8 ft. piece supplied with the power kit are cut to make the short lengths required.

1шт.

951907R91

BRAKE, LH vacuum hyd, 2 on two axle, 3 on three axle

1шт.

951908R91

BRAKE, RH vacuum hyd, 2 on two axle, 3 on three axle

1шт.

951900R91

POWER KIT, vacuum, Consists of:

1шт.

BOLT, 3/8 x 1 mach, For mounting bracket

4шт.

BOLT, 7/16 x 1 mach, For power unit

2шт.

698567R1

BOLT, terminal

2шт.

Included in kit but not used in this application.

1шт.

ELBOW, 1/2 x 45 deg street

2шт.

Included in kit but not used in this application.

1шт.

240369R91

CLAMP, hose

4шт.

103647

VALVE

COCK, drain

1шт.

951902R1

COUPLING, hose

1шт.

951903R1

COUPLING, hose

1шт.

ELBOW, 3/8 pipe to 1/2 hose

2шт.

Included in kit but not used in this application.

1шт.

951965R1

HOSE, vacuum, 8 ft. long

1шт.

30846H

NIPPLE, 3/8 pipe to 1/2 hose

2шт.

NUT, 3/8, For mounting bracket

4шт.

NUT, 7/16, For power unit

2шт.

NUT, 1/2, For power unit

1шт.

951904R1

PLUG, coupling

2шт.

951901R91

POWER UNIT

1шт.

REDUCER, 1/4 to 3/8 pipe

1шт.

Included in kit but not used in this application.

1шт.

TEE, 3/8 pipe

1шт.

Included in kit but not used in this application.

1шт.

WASHER, 3/8 lock, For mounting bracket

4шт.

WASHER, 1/2 lock, For power unit

1шт.

Выбрано товаров: 76
