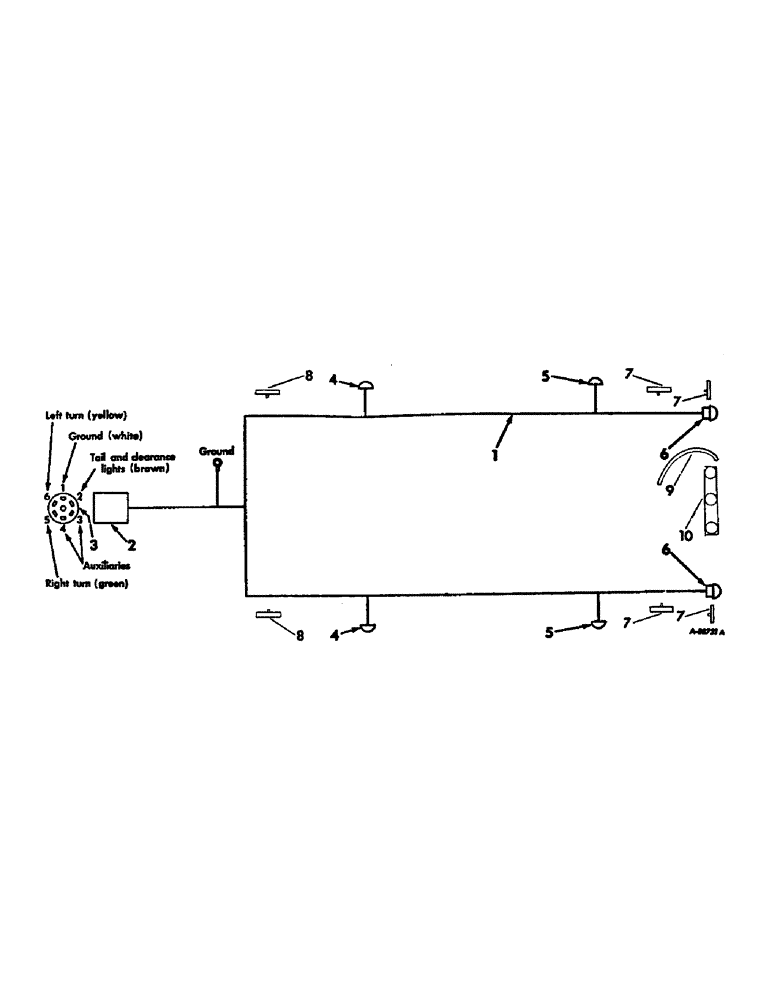

Запчасти Case IH VARIOUS (B-178) - WIRING, 1966 AND SINCE, FOR TRAILERS WITH VACUUM-HYDRAULIC BRAKES

1

951914R2

WIRING, harness

1шт.

200011

TERMINAL

1шт.

BOLT, 1/4 x 5/8 mach

1шт.

NUT, 1/4

1шт.

WASHER, 1/4 lock

1шт.

2

960174R91

PLUG, 6 wire

1шт.

3

962106R91

SOCKET, female, on towing vehicle

1шт.

4

962068R2

LIGHT, amber clearance, front

2шт.

5

962067R92

LIGHT, red clearance, rear

2шт.

BOLT, 1/4 x 3/4 mach

2шт.

NUT, 1/4

2шт.

WASHER, 1/4 lock

2шт.

6

962350R91

TAILLIGHT, Consists of:

2шт.

964586R1

LENS

1шт.

964587R1

GASKET

1шт.

964588R1

SNAP RING

1шт.

964589R1

LICENSE WINDOW

1шт.

964590R1

WIRING PIGTAIL

1шт.

7

959337R1

REFLECTOR

red

4шт.

8

959338R1

REFLECTOR

amber

2шт.

9

NOT USED IN THIS APPLICATION

1шт.

10

959339R1

LIGHT BAR, identification

1шт.

SCREW, no. 10-24 x 1/2 self-tapping

2шт.

WASHER, 3/16 x 7/16 x 20 ga

2шт.

950910R92

BRACKET, taillight

1шт.

BOLT, 5/16 x 1-1/2 mach

1шт.

NUT, 5/16

2шт.

958894R1

SPACER, wire sheave

2шт.

963050R1

STRAP, sheave

2шт.

BOLT, 5/16 x 1-1/4 mach

2шт.

958887R1

SHEAVE, wire

2шт.

950915R1

BEARING, light bracket

1шт.

BOLT, 1/4 x 3/4 mach

4шт.

NUT, 1/4

4шт.

WASHER, 1/4 lock

4шт.

377630R1

CONNECTOR, wire

23шт.

63402H

CLIP, wire

7шт.

963061R91

CONNECTOR, Burndy

2шт.

10359R1

SPRING

1шт.

962334R1

CABLE

1шт.
