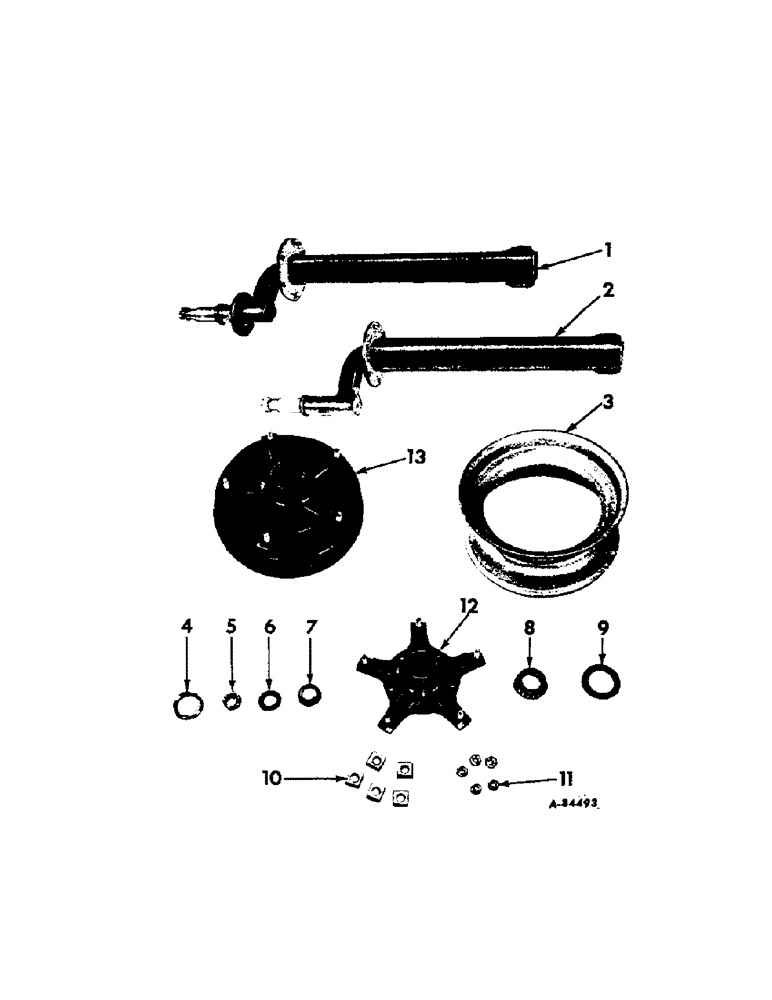

Запчасти Case IH VARIOUS (B-174) - AXLES, WHEELS AND ELECTRIC BRAKES

1

964045R91

STUB AXLE, LH, For wheels w/brakes

1шт.

1

964046R91

STUB AXLE, RH, For wheels w/brakes

1шт.

2

964047R91

STUB AXLE, LH, For wheels w/o brakes

1шт.

2

964048R91

STUB AXLE, RH, For wheels w/o brakes

1шт.

962146R1

BOLT, 5/8 x 9/16 cone-faced mach

2шт.

BOLT, 1/2 x 1-1/2 mach

6шт.

NUT, 1/2

6шт.

WASHER, 1/2 lock

6шт.

3

957565R1

RIM, 14.5

1шт.

5

NUT, 1 in. NF slotted

1шт.

PIN, 3/16 x 1-3/4 cotter

1шт.

6

WASHER, 1-1/16 x 2 x 10 ga

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, outer bearing

1шт.

8

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

CONE, inner bearing

1шт.

9

959272R91

SEAL, grease

1шт.

11

956115R1

NUT

1/2NF c-z

5шт.

12

957564R91

HUB ASSY, For wheels w/o brakes, Composed of:

1шт.

957567R1

HUB

1шт.

957568R1

BOLT

5шт.

651817R1

BEARING CUP

CUP, outer brg

1шт.

130503H

BEARING CUP

CUP, inner brg

1шт.

13

957563R91

HUB ASSY, For wheels w/brakes, Composed of:

1шт.

957567R1

HUB

1шт.

957568R1

BOLT

5шт.

651817R1

BEARING CUP

CUP, outer brg

1шт.

130503H

BEARING CUP

CUP, inner brg

1шт.

962086R1

PLATE, armature

1шт.

957761R1

DRUM, brake

1шт.

959303R91

BRAKE, LH

1шт.

959304R91

BRAKE, RH

1шт.

NUT, 3/8NF c-z

5шт.

WASHER, 3/8 c-z lock

5шт.

962026R1

TIRE, tubeless, 8.00 X 14.5, 2 ply nylon

1шт.

962027R91

VALVE, rim, For tubeless tire

1шт.

251H

GREASE, wheel brg, 1/4 lb per wheel

1шт.
