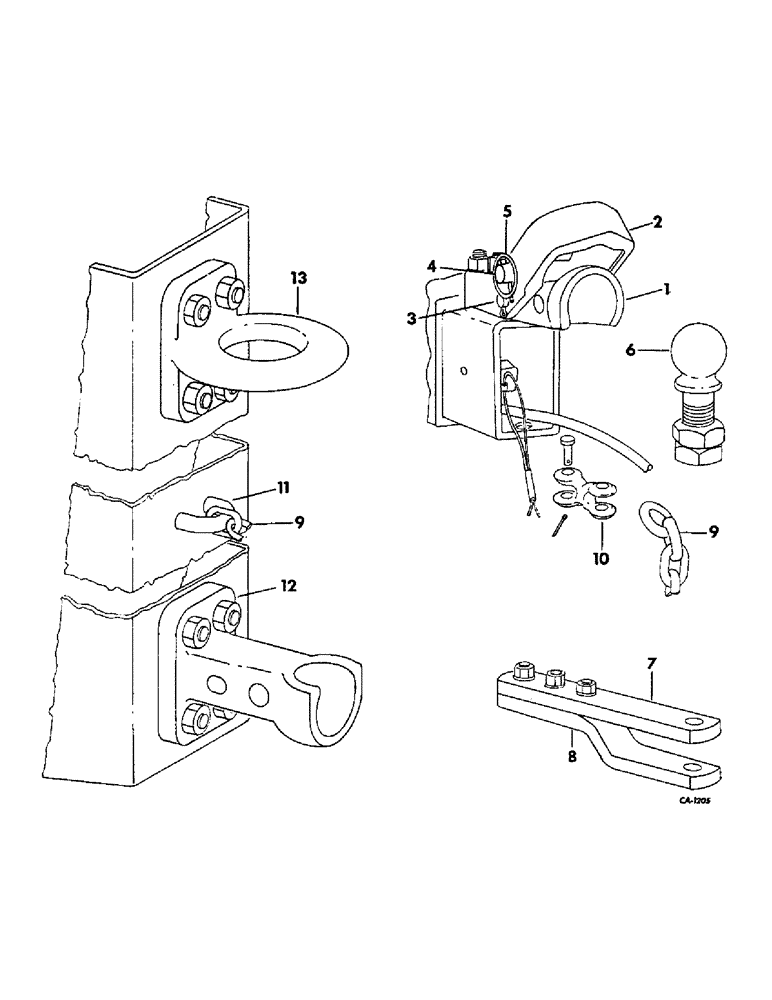

Запчасти Case IH VARIOUS (B-172) - HITCHES AND SAFETY CHAIN, BALL AND SOCKET, CLEVIS & PINTLE HITCH TYPES BALL & SOCKET HITCH, STANDARD

1

962338R1

SOCKET, hitch

1шт.

SCREW, 3/4 x 3-1/2 cap

3шт.

NUT, 3/4

3шт.

WASHER, 3/4 lock

3шт.

2

962339R1

CAP, hitch

1шт.

3

516227R1

DOWEL

PIN, hitch pivot

1шт.

PIN, 3/16 x 1-1/4 cotter

1шт.

4

962341R11

RIM, hitch lock

1шт.

5

959257R91

PIN

quick attachable cotter

1шт.

6

960408R2

BALL, hitch

1шт.

NUT, 1-1/2 jam

2шт.

7

962345R1

BAR, straight , clevis hitch, optional

1шт.

8

962346R1

BAR, offset , clevis hitch, optional

1шт.

SCREW, 3/4 x 3-1/4 cap , clevis hitch, optional

3шт.

NUT, 3/4 , clevis hitch, optional

3шт.

WASHER, 3/7 lock , clevis hitch, optional

3шт.

9

957571R1

CHAIN, safety , clevis hitch, optional

1шт.

10

957571R1

CHAIN, safety , clevis hitch, optional

1шт.

11

962325R91

LINK, connecting, Complete w/pins and cotter pins , clevis hitch, optional

1шт.

12

962317R1

U-BOLT, on safety chain , clevis hitch, optional

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 , clevis hitch, optional

2шт.

13

962472R1

SOCKET, hitch , ball , 1969 and since

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

Ball and socket hitch, 1969 and since Hex, 3/4"-10 x 2 1/4", G5

4шт.

280954

NUT,3/4"-10, G5

ball and socket hitch, 1969 and since 3/4"-10, G5

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Ball and socket hitch, 1969 and since 3/4"

4шт.

14

962782R1

EYE, pintle hitch , 1969 and since

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

Pintle hitch, 1969 and since Hex, 3/4"-10 x 2 1/4", G5

4шт.

280954

NUT,3/4"-10, G5

pintle hitch, 1969 and since 3/4"-10, G5

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Pintle hitch, 1969 and since 3/4"

4шт.
