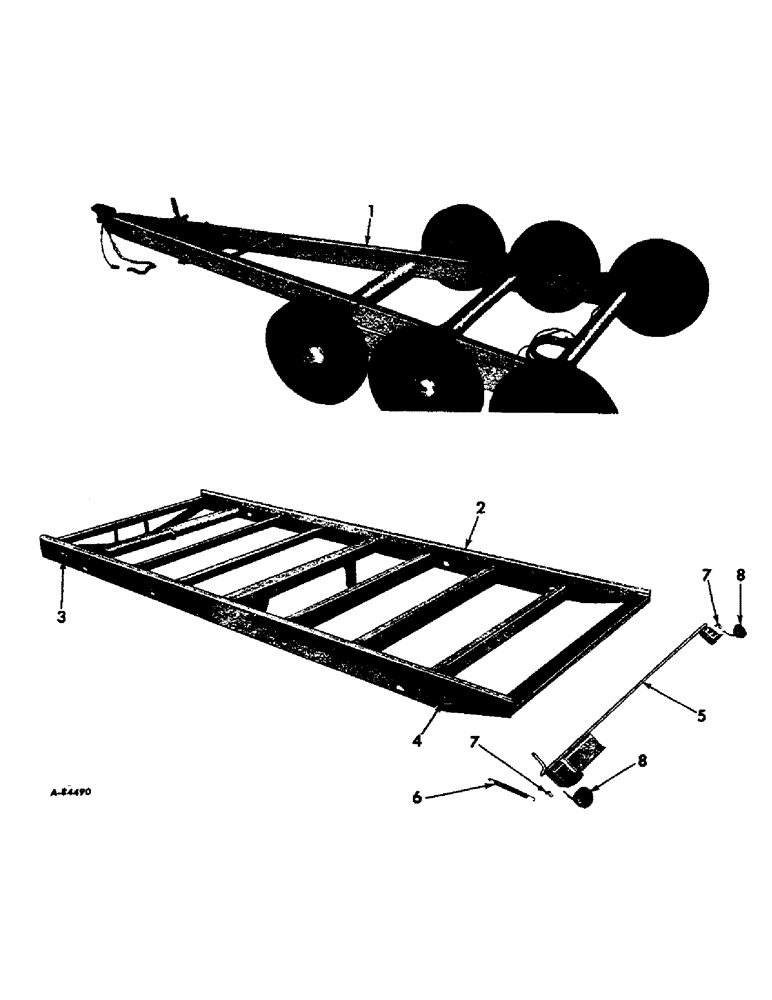

Запчасти Case IH VARIOUS (B-171) - FRAME, CLEARANCE LIGHTS AND TAILLIGHT BRACKET

1

959381R91

FRAME, chassis

1шт.

BOLT, 5/16 x 1-1/2 mach

1шт.

NUT, 5/16

2шт.

2

963600R91

FRAME, tilt bed

1шт.

3

962068R92

LIGHT, amber clearance

2шт.

4

962067R92

LIGHT, red clearance

2шт.

BOLT, 1/4 x 3/4 mach

8шт.

NUT, 1/4

8шт.

WASHER, 1/4 lock

8шт.

5

959910R92

BRACKET, taillight

1шт.

BOLT, 5/16 x 1-1/2 mach

1шт.

NUT, 5/16

2шт.

6

10359R1

SPRING

1шт.

7

950915R1

BEARING, light bracket

2шт.

BOLT, 1/4 x 3/4 mach

4шт.

NUT, 1/4

4шт.

WASHER, 1/4 lock

4шт.

8

962350R91

TAILLIGHT, Consists of:

1шт.

964586R1

LENS

1шт.

964587R1

GASKET

1шт.

964588R1

SNAP RING

1шт.

964589R1

LICENSE WINDOW

1шт.

964590R1

WIRING PIGTAIL

1шт.

641117R1

PIN, clevis, tilt bed hinge bed

2шт.

PIN, 3/8 x 2-1/2 cotter

4шт.

959462R1

PLATE, axle tube cover, For two axle trailer only

1шт.

BOLT, 1/2 x 1-1/2 mach

6шт.

NUT, 1/2

6шт.

WASHER, 1/2 lock

6шт.
