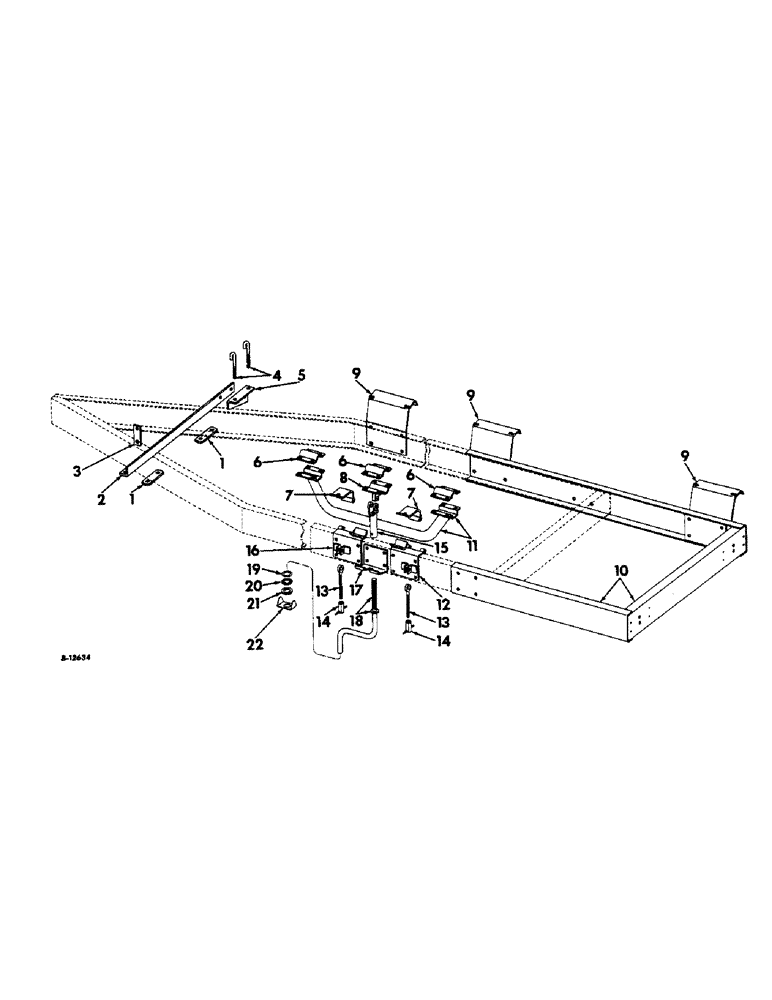

Запчасти Case IH VARIOUS (B-162) - PLATFORM TRANSPORT ATTACHMENT

PLATFORM TRANSPORT, for transporting 403 and 503 combine platforms, machine attachment, Ordering number 632027RD91

1шт.

1

633112R1

CLAMP, platform support

2шт.

BOLT W/NUT, 1/2 x 7 crg

4шт.

WASHER, 1/2 lock

4шт.

2

634381R1

ANGLE, platform support

1шт.

3

653920R1

STRAP, platform jack retainer

1шт.

4

16278KA

HOOK BOLT, platform front support

3шт.

NUT, 1/2

6шт.

5

634382R1

BRACKET, platform support

1шт.

BOLT W/NUT, 1/2 x 1 mach

4шт.

WASHER, 1/2 lock

4шт.

6

634574R1

CLAMP, support

1шт.

BOLT W/NUT, 1/2 x 1 mach

12шт.

WASHER, 1/2 lock

12шт.

7

633109R91

CLAMP, hold down bolt

2шт.

8

634571R91

CLIP, platform jack

1шт.

9

633105R11

SUPPORT W/KEY, platform front

3шт.

BOLT W/NUT, 1/2 x 3 crg

12шт.

WASHER, 1/2 lock

12шт.

10

634377R91

EXTENSION W/CHANNEL AND PLATE, frame

1шт.

BOLT W/NUT, 1/2 x 1 crg

4шт.

BOLT W/NUT, 1/2 x 1 mach

8шт.

BOLT W/NUT, 1/2 x 3 mach

2шт.

WASHER, 1/2 lock

14шт.

11

633100R91

SUPPORT W/CLAMP, frame

1шт.

12

633104R91

BRACKET W/BOLT AND SADDLE, left front support

1шт.

BOLT W/NUT, 1/2 x 3/4 crg

4шт.

WASHER, 1/2 lock

4шт.

PIN, 3/16 x 1 cotter

2шт.

PIN, 1/2 x 1-3/8 dld

1шт.

PIN, 1/2 x 3-3/4 dld

1шт.

13

551415R1

BOLT, hold down

2шт.

WASHER, 17/32 x 1 x 16 ga

2шт.

14

633111R11

STUD W/HANDLE, hold down clamp

2шт.

15

634576R1

SLEEVE, platform jack

1шт.

520175R1

CLIP

PIN, 1/4 x 1-1/4 quick-attachable

1шт.

F18422

AXLE PIN

PIN, 3/4 x 2-1/4 dld

1шт.

16

633103R91

BRACKET W/BOLT AND SADDLE, left rear support

1шт.

BOLT W/NUT, 1/2 x 2-3/4 crg

4шт.

WASHER, 1/2 lock

4шт.

PIN, 3/16 x 1 cotter

2шт.

PIN, 1/2 x 1-3/8 dld

1шт.

PIN, 1/2 x 3-3/4 dld

1шт.

17

653918R1

BRACKET, platform jack

1шт.

BOLT W/NUT, 1/2 x 1 crg

4шт.

WASHER, 1/2 lock

4шт.

18

634575R11

SCREW W/WASHER, platform jack

1шт.

SCREW, 5/16 x 1/2 cap

1шт.

WASHER, 5/16 lock

1шт.

WASHER, 11/32 x 1 x 11 ga

1шт.

19

306970R1

RACE

bearing thrust

1шт.

20

368372R91

THRUST BEARING

jack

1шт.

21

634832R1

WASHER

bearing thrust

1шт.

22

634685R1

RETAINER, jack bearing

1шт.
