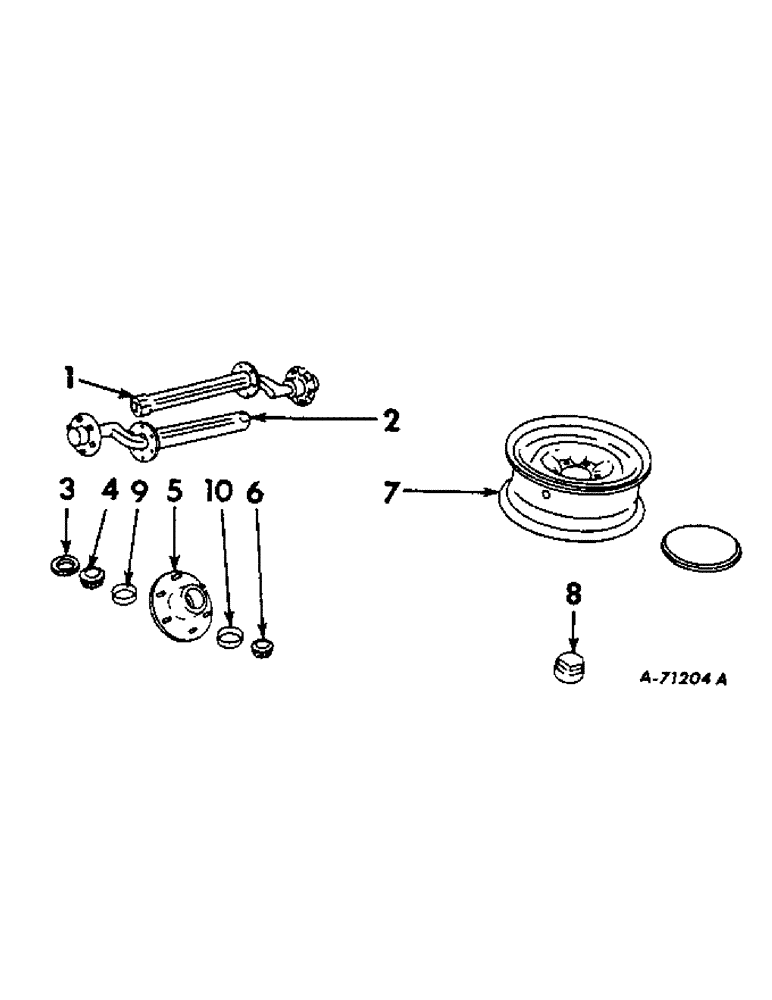

Запчасти Case IH VARIOUS (B-160) - DISC WHEELS AND AXLES, REGULAR EQUIPMENT, 1961 TO 1965

2

964048R91

AXLE W/O BRAKE FLANGE RH, stub

1шт.

962146R1

BOLT, 5/8 x 9/16 hex-hd cone face

4шт.

BOLT, 1/2 x 1-1/2 mach

12шт.

NUT, 1/2

12шт.

WASHER, 1/2 lock

12шт.

3

959272R91

SEAL

2шт.

4

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

CONE, inner bearing assy

2шт.

5

959278R91

HUB ASSY, Consists of:

2шт.

959279R1

HUB

1шт.

651817R1

BEARING CUP

CUP, outer brg

1шт.

130503H

BEARING CUP

CUP, inner brg

1шт.

959280R1

STUD

6шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, outer bearing assy

2шт.

7

960417R92

WHEEL ASSY, 7.50 X 15, optional, Consists of:

2шт.

962391R1

RIM

1шт.

962392R1

LOCKING RING

1шт.

7

959266R91

WHEEL ASSY, 8.00 X 14.5

2шт.

959271R1

NUT

wheel

12шт.

957620R1

NUT, wheel, optional for 15 in. wheels

12шт.

NUT, 1 in. slt NF

2шт.

PIN, 3/16 x 1-3/4 cotter

2шт.

WASHER, 1-1/16 x 2 x 10 ga flat

2шт.

8

960418R2

CAP, grease, 1961 to 1964, threaded

2шт.

9

130503H

BEARING CUP

CUP, inner brg

1шт.

10

651817R1

BEARING CUP

CUP, outer brg

1шт.

251H

GREASE, wheel brg, 1/4 lb per wheel

1шт.
