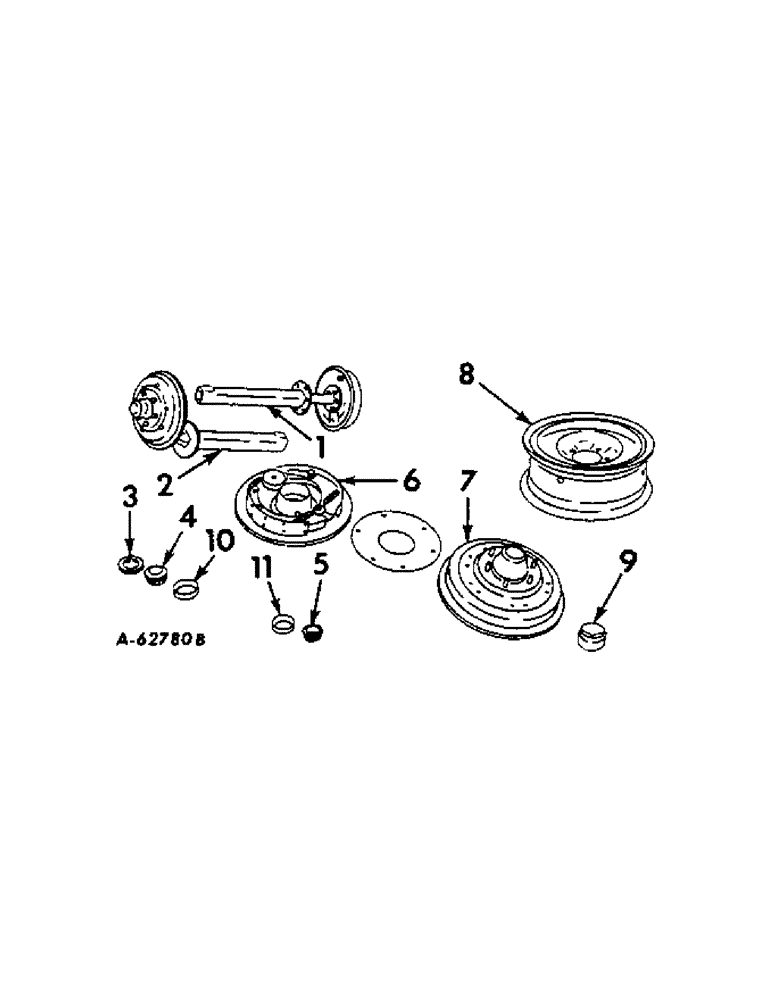

Запчасти Case IH VARIOUS (B-160[1]) - DISK WHEELS & AXLES, FOR ELECTRIC BRAKES IN LIEU OF REG. WHEELS & AXLES, FOR 20 TRAILER, 1961 - 1965

1

964045R91

AXLE W/BRAKE FLANGE LH, stub

1шт.

2

964046R91

AXLE W/BRAKE FLANGE RH, stub

1шт.

962146R1

BOLT, 5/8 x 9/16 hex-hd cone face

4шт.

BOLT, 1/2 x 1-1/2 mach

12шт.

NUT, 1/2

12шт.

WASHER, 1/2 lock

12шт.

3

959272R91

SEAL

2шт.

4

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

CONE, inner bearing assy

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, outer bearing assy

2шт.

6

959303R91

BRAKE, LH

1шт.

6

959304R91

BRAKE, RH

1шт.

NUT, 3/8NF c-z

10шт.

WASHER, 3/8 c-z lock

10шт.

7

959277R91

HUB ASSY, Consists of:

2шт.

959279R1

HUB

1шт.

651817R1

BEARING CUP

CUP, outer brg

1шт.

130503H

BEARING CUP

CUP, inner brg

1шт.

962086R1

PLATE, armature

1шт.

962096R1

DRUM

1шт.

8

960417R92

WHEEL ASSY, 7.50 X 15, optional, Consists of:

2шт.

See exploded view in list on 95 and 130 trailers.

1шт.

962391R1

RIM

1шт.

962392R1

LOCKING RING

1шт.

8

959266R91

WHEEL ASSY, 8.00 X 14.5

2шт.

959271R1

NUT

wheel

12шт.

957620R1

NUT, wheel, optional for 15 in. wheels

12шт.

NUT, 1 in. slt NF

2шт.

PIN, 3/16 x 1-3/4 cotter

2шт.

WASHER, 1-1/16 x 2 x 10 ga flat

2шт.

9

960418R2

CAP, grease, 1961 to 1964, threaded

2шт.

10

130503H

BEARING CUP

CUP, inner brg

1шт.

11

651817R1

BEARING CUP

CUP, outer brg

1шт.

251H

GREASE, wheel brg, 1/4 lb per wheel

1шт.

962051R91

BRAKES, pair LH and RH, Individual brake parts obtainable from Kesley Hays dealers

1шт.
