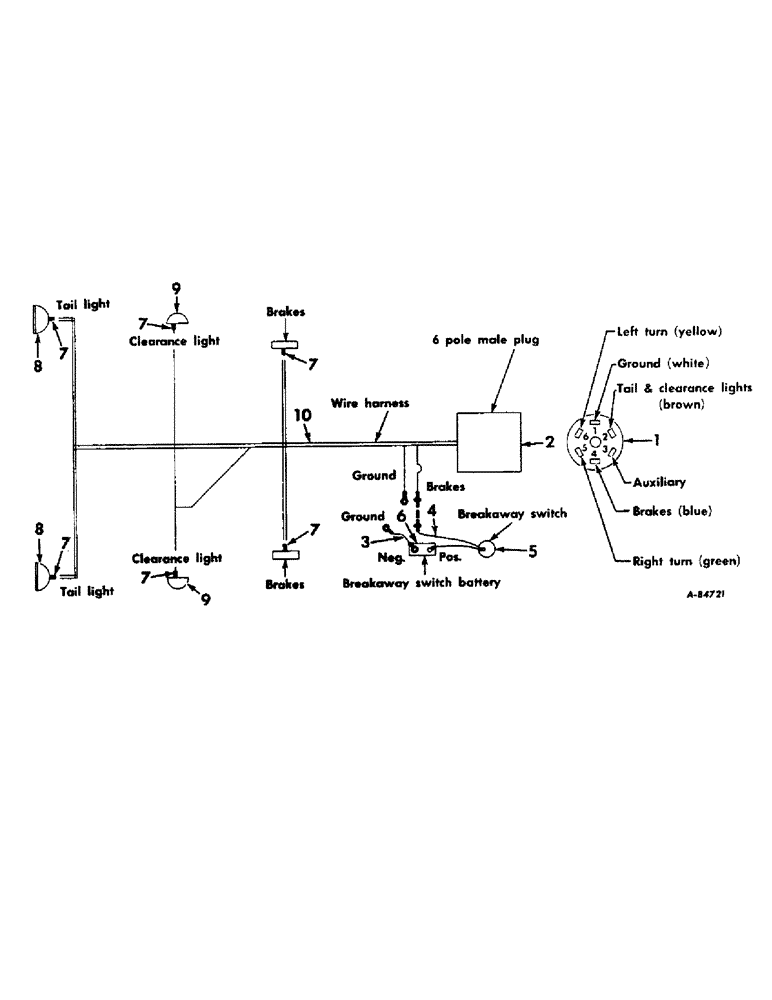

Запчасти Case IH VARIOUS (B-158) - WIRING DIAGRAM, 20 TRAILER, 1965 AND SINCE

1

962106R91

SOCKET, female

1шт.

2

960174R91

SOCKET, male

1шт.

3

960105R12

WIRE, ground

1шт.

4

962062R1

WIRE, switch jumper

1шт.

5

960095R91

SWITCH, emergency breakaway

1шт.

BOLT, 1/4 x 3/4 mach

1шт.

NUT, 1/4

1шт.

WASHER, 1/4 lock

1шт.

6

959302R91

BATTERY, breakaway switch, 12 volt

1шт.

7

377630C1

CONNECTOR, ELEC

CONNECTOR, wire

10шт.

8

962350R91

LIGHT, tail

2шт.

9

959372R91

LIGHT, red clearance

2шт.

10

959288R95

HARNESS, electrical wiring

1шт.
